Exploring the Different Beam Angles of LED Floodlights for Different Uses

Struggling with uneven lighting from your floodlights? The wrong beam angle creates dark spots and wasted light. I’ll help you master beam angles for perfect illumination every time.

Choosing the right beam angle involves balancing three things: coverage area, illumination distance, and light intensity. A narrow beam is for distance, while a wide beam covers a large area up close. The goal is to match the angle to the specific task.

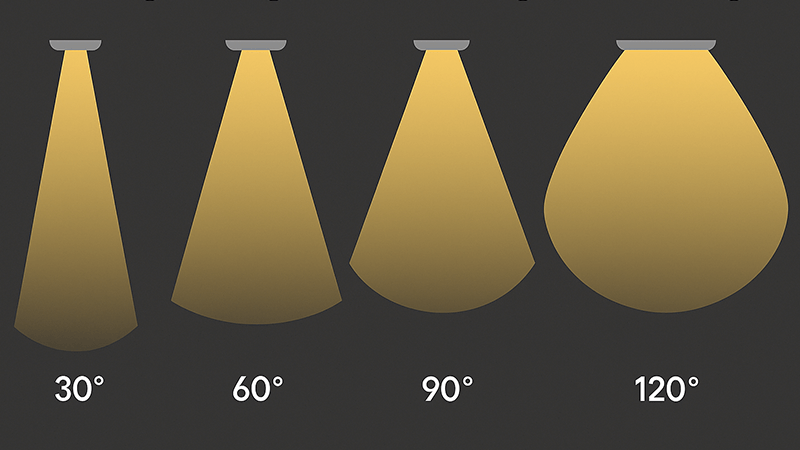

Choosing the right LED floodlight beam angle

I remember a project early in my career where we used a wide beam angle for a tall flagpole. The light barely reached the top. It was an embarrassing mistake but taught me a valuable lesson about the physics of light. The key is to understand the basics first. This knowledge is fundamental for purchasing managers like Shaz, who need to source the right products for specific project needs. Let’s start with the most basic question.

What Is the Beam Angle of a Flood Light?

Do technical terms like "beam angle" make sourcing lights confusing? A wrong choice means the light doesn’t work as intended. Let me simplify it for you right now.

A floodlight’s beam angle measures how wide the light spreads from the fixture. It’s the angle between the two points where the light’s intensity drops to 50% of its center brightness. A smaller number means a tighter, more focused beam of light.

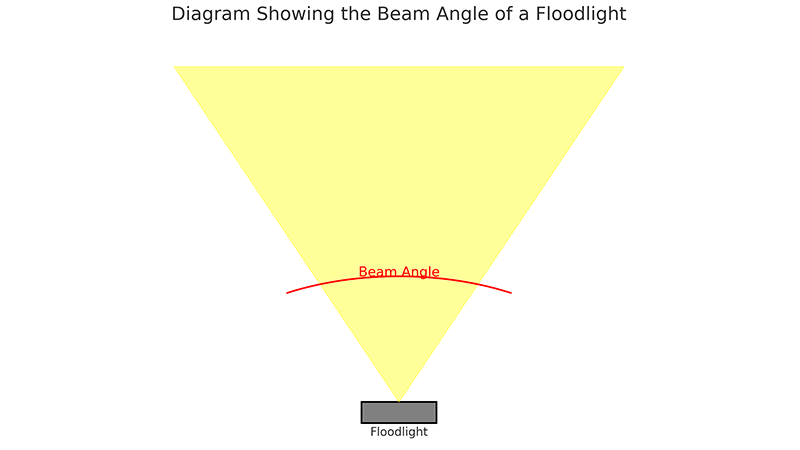

Diagram showing the beam angle of a flood light

Think of the beam angle1 like the spray from a flashlight. A narrow, focused beam travels far. A wide, spread-out beam covers a larger area up close. In technical terms, the beam angle is measured where the light intensity2 falls to 50% of its maximum. This is called the Full Width at Half Maximum3 (FWHM). This is the industry standard and it represents the useful, bright part of the light. There is also a "field angle," which measures where the light drops to 10% intensity. The field angle is always wider, but the light is much weaker at its edges. For professional projects, we always focus on the beam angle.

Why This Matters for a Purchasing Manager

For a purchasing manager who has to evaluate different suppliers, understanding this is critical. You can look at a specification sheet4 and know exactly what the product will do. You won’t be misled by a supplier trying to sell a product based on its wider field angle5. It allows you to compare different floodlights fairly. This knowledge directly translates to better purchasing decisions and more successful projects. My core principle is simple: put the right light in the right place. That starts with the beam angle.

Common Beam Angle Categories

Beam Type Angle Range Common Uses
Narrow Spot < 25° Highlighting architectural columns, tall trees, flagpoles from a distance.
Medium Flood 25° – 60° General building facade lighting, area security, illuminating signs.
Wide Flood > 60° Parking lots, sports practice fields, large yards, wide wall washing.

What Is the Typical Beam Angle for LED Lights?

Are you unsure what a "normal" beam angle is for LED lights? Assuming they are all the same leads to costly mistakes. I’ll show you the typical options available.

LED lights do not have one single "beam angle." They are highly customizable. Common angles for floodlights range from a narrow 10 degrees to a very wide 120 degrees or more. The specific angle is determined by the secondary optics—lenses or reflectors6—placed over the LED chip.

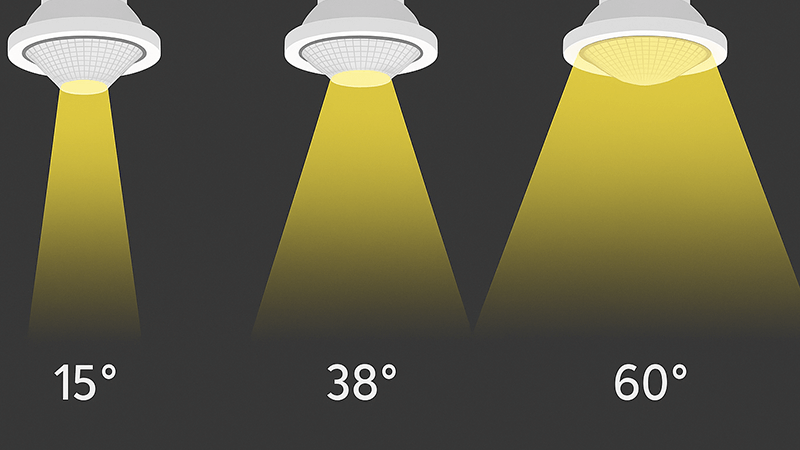

Different lenses for LED lights creating various beam angles

A bare LED chip throws light everywhere, often in a 180-degree pattern. This is not useful for focused illumination. The real work is done by the secondary optics. These are the components that shape the light into a usable beam. As a manufacturer, this is where we focus much of our engineering and design effort.

The Role of Lenses and Reflectors

Modern LED floodlights primarily use two methods to control the beam angle: lenses and reflectors.

Lenses: The most effective method is using Total Internal Reflection (TIR) lenses. These are precision-molded optical components that sit directly over the LED chip. They are incredibly efficient at gathering the light and directing it into a very specific pattern with minimal loss. At iPHD, we use advanced TIR lenses7 because they give us precise control to create everything from a tight 10-degree spot to a wide 120-degree flood, or even custom asymmetrical shapes.

Reflectors: A reflector is essentially a polished, cone-shaped cup that surrounds the LED chip. The shape and finish of this cup determine how the light is shaped. Reflectors are a simpler technology and can be very effective, but they are often less precise than TIR lenses7 and can have more "spill light."

Common Angle Categories and Their Applications

The flexibility of LEDs allows us to create lighting tools for any situation. I once helped a client in the UAE who needed to light a perimeter fence next to a residential area. An asymmetric beam8 was perfect. It pushed the light down and forward onto the fence line, but it cut off the light sharply on the backside, preventing any spill into the neighbors’ windows.

Category Angle Intensity & Distance Coverage Area Best For…
Spot < 25° High intensity, long distance Small Accenting a statue, lighting a flag from far away, pinpointing details on a tall building.
Flood 25° – 60° Medium intensity, medium distance Medium General security lighting9, illuminating building walls, lighting small parking areas.
Wide Flood 60° – 120° Lower intensity, short distance Large Washing a wide wall, lighting a broad yard, illuminating a large work area from a low height.
Asymmetric Varies Varies Custom Shape Street lighting (directing light onto the road, not into houses), wall washing (even light from top to bottom).

What Is the Difference Between a 60-Degree and 120-Degree LED Light?

Do 60-degree and 120-degree floodlight10s seem similar? Choosing the wrong one results in either a dim space or wasted light. Let’s compare them to see the huge difference.

A 60-degree light creates a focused, intense beam, ideal for illuminating objects from a distance. A 120-degree light produces a wide, less intense spread, perfect for covering a large area from a close distance. The choice depends entirely on balancing coverage area11 with required brightness.

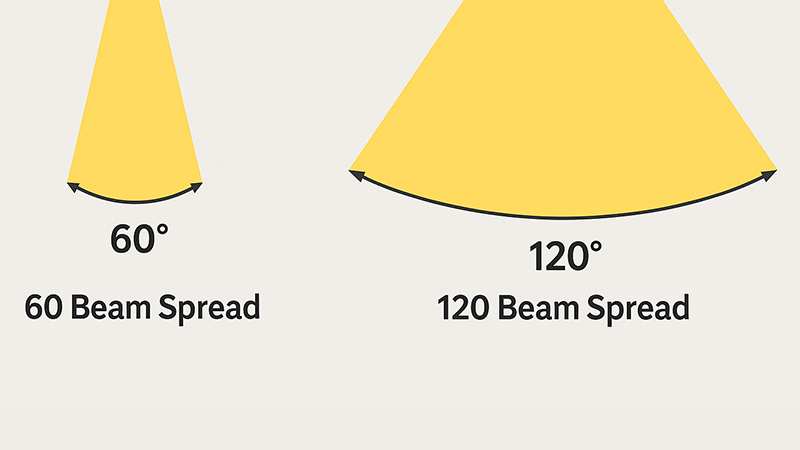

Comparison of 60 degree and 120 degree beam spread

The difference is all about the trade-off between intensity and coverage. Imagine you have a bucket of water. If you pour it out over a small circle, you get a deep puddle. That’s your 60-degree beam—high intensity over a smaller area. If you throw that same bucket of water to cover a large square, the ground only gets damp. That’s your 120-degree beam—low intensity over a larger area. The total amount of light (lumens) from the fixture is the same, but how it’s distributed on the target is completely different.

A Practical Scenario: Lighting a Parking Area

Let’s say you need to light a small commercial parking lot. The light poles are 8 meters high.

  • Using 120-degree floodlights: These would be a great choice. Mounted high up, the wide beam12 would spread out to cover a large area on the ground. You would get broad, even coverage between poles, eliminating dark spots and ensuring the whole area is safe.
  • Using 60-degree floodlight13s: From the same 8-meter pole, the 60-degree beam would create a very bright circle of light directly underneath the pole. However, the areas between the poles would be left in near darkness. You would create "hot spots" and deep shadows, which is bad for security and visibility. The 60-degree light is the wrong tool for this job.

Key Factors in Your Decision

As a purchasing manager, you need to ask your project team two simple questions: "What is the mounting height14?" and "How large is the target area?" The answers will guide you.

Factor 60-Degree Beam 120-Degree Beam
Light Intensity (Lux) Higher. More light is focused on a smaller area. Lower. The same amount of light is spread over a larger area.
Coverage Area Smaller. Good for focused tasks. Larger. Good for general illumination of wide spaces.
Mounting Distance Can be mounted further away from the target to light a specific object. Must be mounted closer to the target, or very high up for wide area coverage.
Typical Use Security cameras, sign lighting, accenting building features. Parking lots, large backyards, warehouse interiors, sports areas.

What Does a 40-Degree Flood Light Mean for My Project?

Seeing a "40-degree" spec can be confusing. What does it mean for your project? Ignoring it can lead to harsh hot spots. This angle is a versatile professional’s tool.

A 40-degree floodlight15 provides a "medium flood" beam. It offers a great balance between concentrated intensity and decent area coverage. It’s more focused than a standard 60-degree light but wider than a narrow spotlight, making it perfect for general-purpose accent and area lighting.

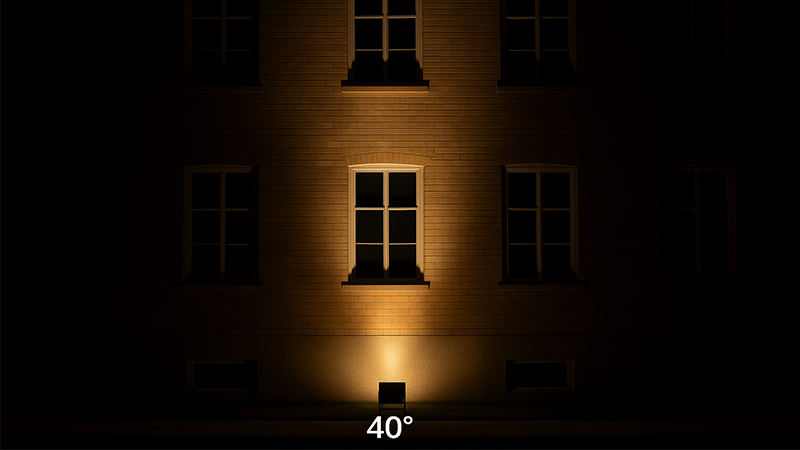

A building facade illuminated with a 40 degree flood light

The 40-degree beam is a true workhorse in professional lighting design16. It perfectly demonstrates my core philosophy: balancing distance, coverage, and uniformity. It’s not as intense as a 20-degree spot, but its beam is much more useful for covering surfaces. It’s not as wide as a 90-degree flood, but it delivers much more punch and brightness onto the target. I often call it the "Goldilocks" beam because for many applications, it’s just right.

When to Specify a 40-Degree Floodlight

As a buyer, you should see the 40-degree option as a problem-solver. It is often the perfect choice when a narrow spot is too harsh and a wide flood is too weak. I sourced lights for a hotel project in Dubai where the designer wanted to light the architectural pillars. A 20-degree beam created ugly stripes of light. A 60-degree beam washed everything out and hid the details. The 40-degree beam was perfect; it bathed each pillar in a strong, clean wash of light from top to bottom.

Look for these applications:

  • Building Facades: Excellent for lighting sections of a wall from a moderate distance. You can use several fixtures to create a beautiful "scalloped" light effect.
  • Landscape Lighting: Ideal for lighting up medium-to-large trees. It highlights the entire canopy instead of just one branch.
  • Signage: Provides clear, even illumination on a medium-sized sign without excessive light spill.
  • Security: Very effective for lighting pathways, entryways, and specific zones where you need bright, controlled light.

Comparing the "Medium" Beam Angles

Feature 25° Spot 40° Flood 60° Flood
Primary Goal Accent / Distance Balance / General Purpose Area Coverage
Visual Feel Dramatic, High Contrast Bright but Smooth Soft, Diffuse
Best for… Tall, thin objects Building sections, trees Small walls, entryways

Conclusion

Choosing the right beam angle balances distance, coverage, and brightness. By understanding this, you can select the perfect floodlight for any project and ensure outstanding results every time.



  1. Understanding beam angles is crucial for effective lighting design and ensuring the right illumination for your space.

  2. Understanding light intensity is key to achieving the desired brightness in your lighting projects.

  3. Understanding FWHM helps in selecting lights that provide the right spread and intensity.

  4. Knowing what to check on a spec sheet ensures you make informed purchasing decisions.

  5. Knowing the difference helps in making informed decisions about light distribution.

  6. Understanding reflectors can help you choose the right technology for your lighting needs.

  7. TIR lenses enhance light efficiency; learn how they improve your lighting solutions.

  8. Asymmetric beams are useful for targeted lighting; explore their applications for better results.

  9. Effective security lighting is vital for safety; explore best practices to enhance your setup.

  10. 120-degree floodlights provide wide coverage; learn how they can enhance safety and visibility.

  11. Exploring coverage area helps you choose the right floodlight for your specific lighting needs.

  12. Wide beams cover larger areas; discover their best uses for effective illumination.

  13. A 60-degree floodlight is great for focused illumination; find out how it can benefit your project.

  14. Mounting height is crucial for effective lighting; learn how it influences your choices.

  15. The 40-degree floodlight is versatile; discover its ideal uses for effective lighting.

  16. Understanding lighting design principles helps create beautiful and functional spaces.
