Worried about downlights and fire risk? A hole in your ceiling is a fire’s express route. Let me show you how to check for true fire-rated safety.
The best way is to look beyond the downlight itself. A truly safe setup involves a certified downlight with a metal body, good heat sink, and professional installation. For certain ceilings, a fire hood is essential. It’s about the complete system.
I’ve seen many purchasing managers like you, Shaz, focus only on the light itself. They ask me, "Michael, is this one light fire-rated?" But that’s like asking if a single car tire is safe for a long road trip. You need to look at the whole car. The same is true for lighting safety. Fire risk is a chain reaction, not a single event. So, let’s break this down further and look at the specifics. You need to know exactly what to look for on the product and in your ceiling to be truly safe.
How to tell if a downlight is fire rated?
Confused by all the symbols on downlight boxes? It’s hard to know what’s truly safe. I’ll show you the exact physical signs and certifications you must look for.

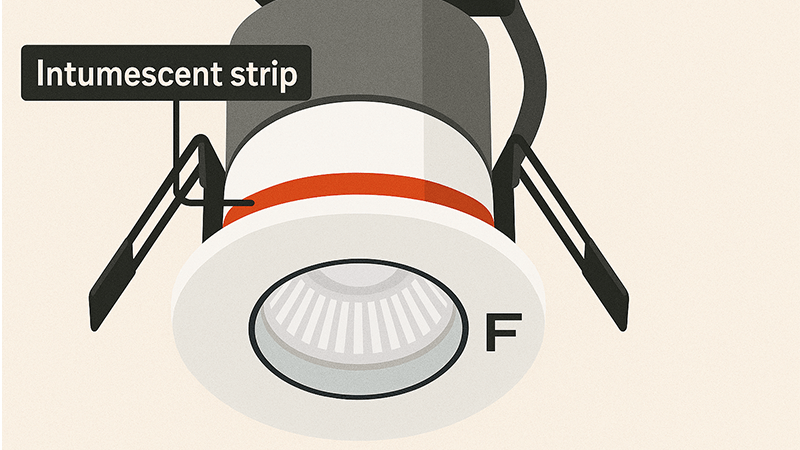

Look for a solid "can" design and an "F" mark, indicating it can be installed on flammable surfaces. Check for an official certification mark like CE or UL. The key is the intumescent pad, which swells with heat to seal the hole.
A fire-rated downlight is not just a light. It is a safety device. Its main job is to restore the fire integrity of the ceiling you cut a hole into. Think of your ceiling as a barrier that slows down a fire, giving people time to escape. When you install a downlight, you create a weak spot in that barrier. A fire-rated downlight is designed to plug that hole when a fire starts. The most critical part is the intumescent material. This is a special strip or pad built into the downlight. When it gets very hot, it expands rapidly, like a fast-acting foam. This swelling action seals the hole completely, stopping flames and smoke from passing through to the floor above. It’s a simple idea, but it’s incredibly effective. You can’t just rely on looking for this material, though. You need to verify its performance through independent testing. This is why official certifications are non-negotiable for me. They prove the downlight will work as designed when it matters most.
The Three Pillars of Fire-Rated Verification
To be absolutely sure, you need to check three key areas. This has been my checklist for over a decade in manufacturing.
- Physical Construction: A genuine fire-rated downlight has a robust, fully enclosed metal casing, often called a "can." This helps contain any issues. Critically, it will have that intumescent material, which is usually visible as a black or red strip around the inside or on top of the fixture.
- Official Markings: Look directly on the product body and its packaging for certification marks. These are not brand logos. They are symbols from independent safety organizations. They prove the product has passed rigorous fire safety tests.
- Documentation: Always ask the supplier for the test reports and certificates. A reputable manufacturer like us at iPHD will provide this documentation readily. If a supplier cannot provide it, that is a major red flag for me.
Here is a quick reference table I use to train my team:
| Verification Method |
What to Look For |
Why It’s Important |
| Visual Inspection |
A solid metal "can" design. An intumescent strip (often black/red). A well-built, sturdy feel. |
The construction must contain fire and the intumescent material is essential to seal the gap. |
| Certification Marks |
Symbols like CE, UL, ETL, or CCC printed directly on the light’s body and the box. |
These marks prove the product has been independently tested to meet specific fire safety standards. |
| Supplier Documentation |
A formal certificate from the testing body. A detailed test report showing the fire rating (e.g., 60-minute). |
This is your ultimate proof. It confirms the claims made on the packaging are legitimate. |
Are LED downlights a fire risk?
You hear about LEDs being cool, so you think they are safe. But any electrical device carries some risk. Overheating or bad wiring can turn any light into a hazard.
High-quality LED downlights are very safe, but they are not zero-risk. The danger comes from poor heat dissipation, faulty drivers, or incorrect installation, not usually the LED chip itself. Always choose a well-designed product.
The main reason LED downlights are safer than old halogen ones is heat. Halogen bulbs get incredibly hot, easily hot enough to ignite materials like dust or insulation. LEDs produce light much more efficiently, so they generate far less heat. However, they do still produce some heat. This heat is generated at the back of the LED chip and must be moved away effectively. This is the job of the "heat sink." The heat sink is usually the metal, finned part of the downlight body. Its purpose is to draw heat away from the sensitive electronics and dissipate it into the air. If the heat sink is poorly designed or too small, heat builds up. This can shorten the life of the LED and, in a worst-case scenario, degrade the internal components or driver, creating a potential fire risk. I remember a case early in my career where a client bought cheap, uncertified downlights. The heat sinks were just thin, flimsy pieces of metal. After a year, many of them failed, and one even started to melt its plastic housing. That taught me a valuable lesson: the quality of heat management is a direct indicator of the safety and longevity of an LED product.
Analyzing the Real Risks
The risk isn’t from a single component but from a failure in the system. As a purchasing manager, you need to understand where these failures can happen to make better sourcing decisions.
- The Driver: The LED driver is a small power supply that converts your building’s AC voltage to the low DC voltage the LED needs. Cheap, poorly made drivers are a major point of failure. They can overheat, short-circuit, and become a fire hazard. A good driver has built-in protections against over-current and over-temperature.

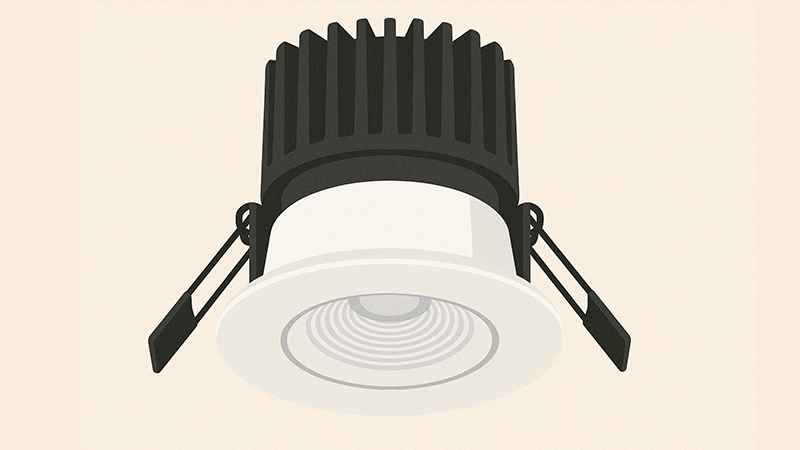

- The Heat Sink: As I mentioned, this is crucial. A good heat sink is made of die-cast aluminum and has a large surface area to get rid of heat. When comparing products, physically feel the weight and look at the size of the heat sink. A heavier, larger one is usually a sign of better quality.
- The Installation: This is the human element. Even the best downlight can be a risk if installed improperly. Covering a non-IC-rated downlight with insulation is a classic mistake. This traps all the heat, creating a dangerous situation. Wires must be connected securely using the correct connectors. Loose connections can create sparks, which is a direct fire starter.
| Risk Factor |
Description |
How to Mitigate |
| Poor Heat Management |
The heat sink is too small or made of cheap materials, causing the components to overheat. |
Choose downlights with substantial, heavy aluminum heat sinks. Compare the physical build quality. |
| Low-Quality Driver |
The internal power supply is made with cheap components that can fail, short-circuit, or overheat. |
Ask for the driver’s specifications and certifications. Use brands known for reliable components. |
| Incorrect Installation |
The downlight is covered with insulation when it shouldn’t be, or the wiring is loose and insecure. |
Always use a qualified electrician. Ensure the correct type of downlight (IC-rated) is used. |
How do you know if something is fire rated?
You see "fire rated" on many products, not just lights. But what does it really mean? It’s a promise of performance under extreme conditions, not a simple feature.
A product is fire-rated if it has been officially tested and certified by an independent third party to resist fire for a specific time, like 30, 60, or 90 minutes. Look for the official certification marks.
When a product is labeled "fire-rated," it means it has been subjected to a controlled fire test in a laboratory. During this test, the product is installed in a sample wall or ceiling, and a fire is lit on one side. Testers then measure how long it takes for the fire to breach the barrier that the product is a part of. The rating is given in minutes (e.g., 60 minutes). This number tells you how long the product will help maintain the structure’s integrity during a fire, preventing the spread of flames and smoke. For a downlight, this means it has been proven to seal the hole it occupies for that amount of time. This is completely different from a product being "fire-retardant" or "fire-resistant." Those terms often describe the material’s properties, meaning it won’t ignite easily. "Fire-rated," however, is a performance standard for the entire assembled product as part of a larger system. It’s a much higher and more meaningful standard of safety that requires rigorous, independent proof.
Deconstructing the Certification Process
Understanding how a product earns its rating gives you the confidence to trust it. It’s a structured, unbiased process.
- Step 1: The Standard: An independent body, like UL (Underwriters Laboratories) or a national standards organization, defines the test procedures. This ensures every product is tested in exactly the same way. The standard specifies the furnace temperature, test duration, and failure criteria.
- Step 2: The Test: The manufacturer submits their product to an accredited, third-party laboratory. They cannot test it themselves. The lab builds a replica of a ceiling, installs the downlight, and runs the fire test according to the standard.
- Step 3: The Certification: If the product passes the test (for example, it maintains the ceiling’s integrity for over 60 minutes), the lab issues a certificate and a test report. The manufacturer is then authorized to put the certification mark on their product.
- Step 4: Ongoing Audits: This is very important. The certification body often conducts regular, unannounced factory visits to ensure the manufacturer is still making the product to the exact same specifications as the one that was tested. This prevents companies from cutting corners after getting certified.
This process is why you must insist on seeing the certificate and not just trust a logo on a box. The paperwork is the proof that this entire rigorous process has been completed successfully.
Are GU10 downlights fire rated?
GU10 is one of the most common lamp types. Many people assume the lamp itself provides the fire rating. This is a dangerous misunderstanding I see all the time.

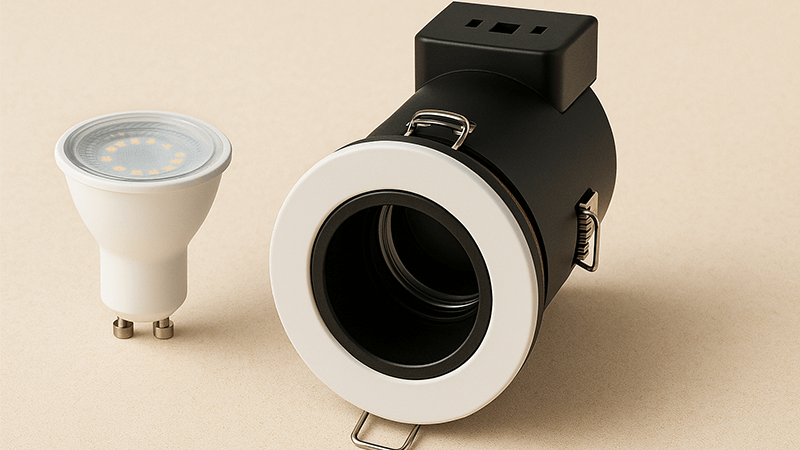

A GU10 bulb is never fire-rated on its own. The fire rating comes from the downlight fitting or housing that the GU10 bulb is placed into. You must buy a fire-rated fitting for your GU10 bulb.
This is a point of confusion that I work hard to clarify with my clients. The GU10 is just the lamp. It’s a standardized cap with two pins that you twist and lock into place. The lamp’s only job is to produce light. It has no fire-stopping capabilities. The fire rating is entirely a feature of the downlight fixture—the metal can and assembly that is mounted into your ceiling. Think of it like this: the bulb is the engine, but the fixture is the car’s safety cage. If you buy a standard, non-fire-rated "open-backed" GU10 fitting, you are essentially leaving a gaping hole in your ceiling’s fire barrier. Fire and smoke will pass right through it in seconds. To get a fire-rated installation, you must purchase a GU10 fitting that is specifically built and certified as fire-rated. These fittings will have the enclosed "can" design and the intumescent material I described earlier. The GU10 bulb simply slots inside this protective housing. So, when you are sourcing products, you must specify "fire-rated GU10 fittings," not just "GU10 downlights." The distinction is critical for safety.
Choosing the Right System: Integrated vs. GU10
As a buyer, you have two main choices for LED downlights, and each has implications for fire safety.
- Fire-Rated GU10 Fittings: These are the traditional choice. You buy the fire-rated housing and a separate GU10 LED lamp.
- Pros: You can easily replace the lamp if it fails or if you want to change the color temperature. It’s a flexible system.
- Cons: You are combining two separate products. You must ensure both the fitting and the lamp are from reputable brands. A cheap GU10 lamp could still overheat inside a good fitting.
- Integrated Fire-Rated LED Downlights: These are modern, all-in-one units. The LED light source and the driver are built directly into the fire-rated housing.
- Pros: The entire unit is designed and tested as a single system. The manufacturer has optimized the heat management for the specific LED source, leading to better reliability and safety. Installation is often simpler.
- Cons: If the LED fails, you typically have to replace the entire unit, not just a bulb.
Here’s a table to help you decide what’s best for your projects:
| Feature |
Fire-Rated GU10 Fitting + Lamp |
Integrated Fire-Rated Downlight |
| Flexibility |
High. Lamps are interchangeable and easily replaced. |
Low. The entire unit must be replaced if the light fails. |
| Performance |
Good, but depends on the quality of both the lamp and fitting. |
Excellent. The system is factory-optimized for heat and light. |
| Reliability |
Variable. A poor-quality lamp can compromise the system. |
High. Designed as a single, sealed unit for a long life. |
| Best For |
Projects where lamp replacement flexibility is the top priority. |
Most commercial and new-build projects where reliability is key. |
In my experience, for most new projects, the integrated fire-rated downlight is the superior and safer choice. The performance and reliability you get from a unit designed as a complete system are worth the trade-off in flexibility.
Conclusion
To ensure fire safety, view the downlight not as a single product, but as a complete system. Check for certifications, quality materials, and always use a professional for installation.
