The Structure and Working Principle of LED Downlights

Last Updated on: July 7, 2025

LED downlights are everywhere-homes, hotels, offices—but most people don’t know how they work. Confusion often leads to wrong buying decisions or poor installations.

Table of Contents

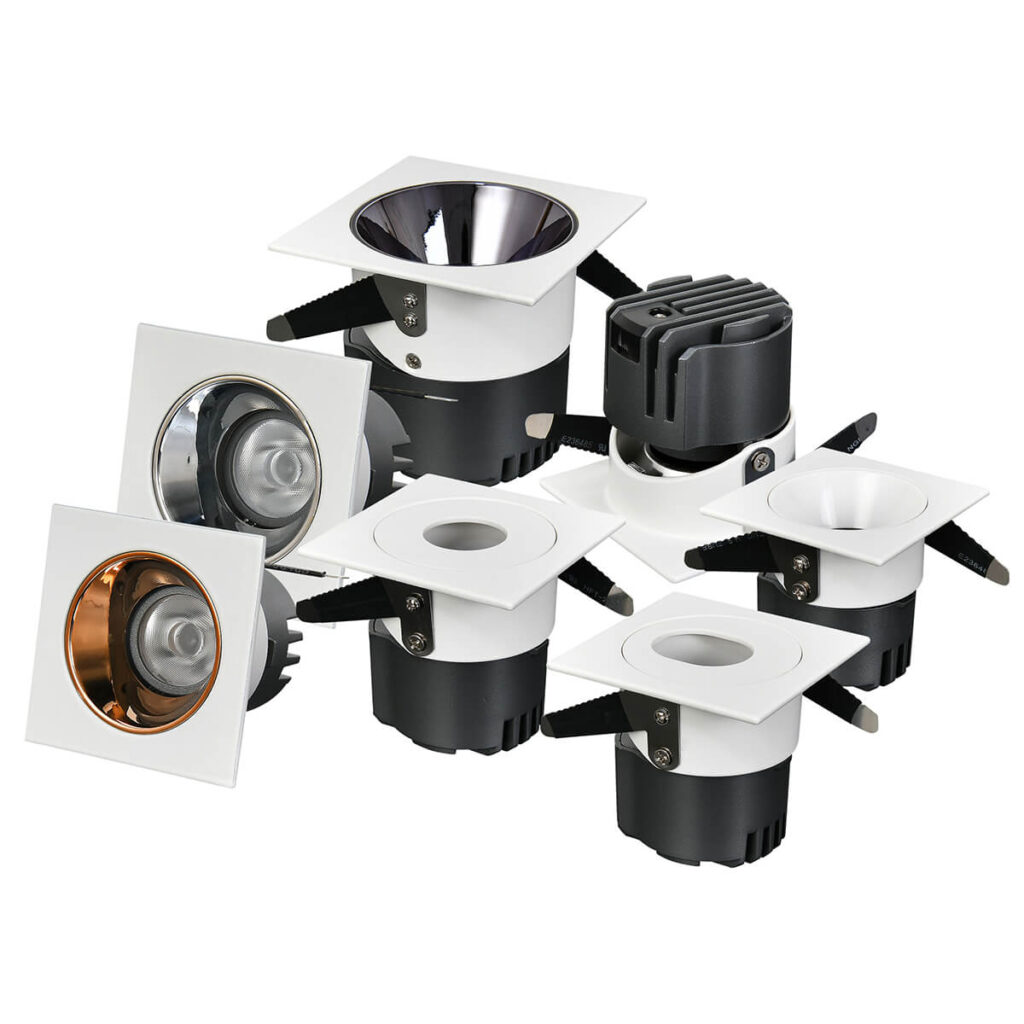

downlight light

LED downlights work using a semiconductor diode that emits light (photons) when an electric current flows through it. This process is called electroluminescence. The structure includes a housing, an LED chip, a driver, a heatsink, a diffuser, and a reflector. Unlike incandescent bulbs that generate heat, LED downlights produce light directly, making them energy-efficient and long-lasting.

Now that you know the basics, let’s dive deeper into the structure, function, energy benefits, and comparisons that will help you pick the right LED downlight.

What Is the Structure and Working Principle of LED?

An LED (Light Emitting Diode) is a semiconductor device that emits light when an electric current flows through it. The core structure of an LED consists of a P-N junction diode made from specially doped semiconductor materials—typically gallium arsenide (GaAs), gallium phosphide (GaP), or gallium nitride (GaN). One side (P-type) is rich in holes, while the other (N-type) contains free electrons.

When a forward voltage is applied, electrons from the N-type region cross the junction and recombine with holes in the P-type region. This recombination process releases energy in the form of photons—a phenomenon known as electroluminescence.

Key Components of an LED Structure:

  • Semiconductor Chip: The heart of the LED that emits light.
  • Substrate/Base: Provides mechanical support and thermal conduction.
  • Lens or Encapsulation: Focuses and protects the light emission.
  • Reflector Cup: Directs the emitted light for better brightness.
  • Wires/Electrodes: Connect the LED to an external power source.

This structure allows LEDs to be extremely efficient, converting most electrical energy directly into visible light, unlike traditional bulbs which waste energy as heat.

How Do LED Downlights Work in Detail?

LED downlights are recessed lighting fixtures designed to emit light downwards in a focused, efficient manner. What sets them apart is their use of LED (Light Emitting Diode) technology—a major leap from traditional incandescent or fluorescent lighting.

The Working Mechanism:

  1. Electricity Flow Begins
  2. When the light switch is turned on, electric current flows through the driver—a small electronic circuit that converts high-voltage AC (Alternating Current) from your home’s mains into low-voltage DC (Direct Current), which is safe and suitable for powering LEDs.
  3. Driver Feeds the LED Chip
  4. The LED driver regulates the power sent to the LED chip. It ensures a constant current supply, protecting the LED from voltage fluctuations that could reduce its lifespan or efficiency.
  5. Electroluminescence Happens Inside the Chip
  6. As current flows through the P-N junction of the LED chip, electrons recombine with holes and release energy in the form of photons (light). This is the electroluminescence process. Unlike traditional bulbs, no filament heats up—so there’s very little heat loss.
  7. Optical System Shapes the Light
  8. The emitted light passes through a diffuser lens that softens and spreads it evenly. Some downlights also include reflectors or beam-shaping optics to control the angle and focus of the light.
  9. Thermal Management
  10. LEDs produce a small amount of heat, which can affect performance over time. A heatsink is built into the back of the fixture to dissipate this heat and maintain performance and longevity.

Main Functional Layers in an LED Downlight:

  • LED Chip or COB (Chip-on-Board): Emits light efficiently.
  • Driver Circuit: Converts and regulates electricity.
  • Heat Sink: Keeps the chip cool and maintains durability.
  • Optics (Lens/Diffuser): Spreads and shapes the beam.
  • Housing/Trim: Aesthetic and structural cover that fits into ceilings.

Key Features of LED Downlight Operation:

  • Instant On: No warm-up time required.
  • Dimmable Options: Compatible with smart and manual dimmers.
  • Low Power Consumption: Uses up to 80% less energy than halogens.
  • Long Life: Typical lifespan ranges from 25,000 to 50,000 hours.
  • Color Temperature Control: Options range from warm white (2700K) to cool daylight (6500K).
outdoor lighting color temperature chart

What Are the Main Components Inside An LED Downlight?

An LED downlight may look sleek and minimal from the outside, but inside it’s a smartly engineered system made up of multiple components working together to deliver efficient, long-lasting light. Understanding these components helps electricians, designers, and even homeowners make better lighting choices.

Let’s break down each essential part of an LED downlight:

1. LED Light Source (Chip or Module)

The heart of the fixture, the LED chip (often in SMD or COB form), emits light when powered.

  • SMD (Surface-Mounted Diode): Multiple small diodes on a circuit board—ideal for wide, even light.
  • COB (Chip-on-Board): Multiple LED chips packed into a single module—great for high-brightness applications with focused beams.

2. LED Driver

This is the brain of the system. The driver converts AC (Alternating Current) to DC (Direct Current) and regulates voltage and current to protect the LED.

  • A high-quality driver ensures flicker-free light, dimming compatibility, and extended LED life.

3. Heatsink

LEDs generate some heat, and this component manages it.

  • Made of aluminum or ceramic, the heatsink absorbs and dissipates heat, keeping the LED chip cool and maintaining performance.
  • Poor heat dissipation shortens LED lifespan and reduces brightness over time.

4. Reflector or Lens

These optical components help control the direction and spread of light.

  • Reflector: A polished cone or curved surface that focuses light downward.
  • Lens/Diffuser: Softens the light and spreads it more evenly, reducing glare.

5. Trim or Bezel

This is the visible outer ring that holds the downlight into the ceiling.

  • It comes in different colors and finishes to suit interior designs.
  • Some trims include anti-glare features or adjustable gimbals for directional lighting.

6. Mounting Frame or Clips

These are the hardware parts that secure the downlight into a ceiling cavity.

  • Spring-loaded clips or mounting brackets allow for quick and secure installations, especially in false ceilings.

7. Diffuser or Cover

Located at the front, the diffuser spreads the light evenly and protects the internal parts from dust, insects, and moisture.

  • Materials may include frosted plastic, glass, or polycarbonate.
  • Some advanced models use prismatic lenses for better light distribution.

Optional Add-ons in Smart or Premium Models:

  • Dimming Control Circuitry
  • Color Temperature Tunability (CCT switchable)
  • Motion or Daylight Sensors
  • WiFi or Bluetooth Modules for Smart Control

In short, every part of an LED downlight—from the chip to the housing—is optimized for efficiency, durability, and visual comfort. This makes them a superior choice over older lighting technologies.

What is Electroluminescence and How Does it Power LED Lights?

Electroluminescence is the key scientific principle behind how LED lights function. It’s the process where a material emits light in response to an electric current or a strong electric field. In simple terms, it’s how electricity gets turned directly into light, without relying on heat, filaments, or gas.

The Science Behind Electroluminescence:

Inside every LED (Light Emitting Diode) is a semiconductor material—usually made from compounds like Gallium Arsenide (GaAs) or Gallium Nitride (GaN). This material is engineered to form a P-N junction, where two regions exist:

  • P-type (Positive): Contains “holes”—places where electrons are missing.
  • N-type (Negative): Contains free electrons.

When a forward voltage is applied across the LED:

  1. Electrons flow from the N-side to the P-side.
  2. When these electrons meet the holes, they recombine.
  3. This recombination releases energy in the form of photons, which we see as visible light.

This light emission is known as electroluminescence.

Why It’s Perfect for Lighting:

Unlike incandescent bulbs that generate light by heating a metal filament, LEDs powered by electroluminescence are:

  • Cooler (low heat emission)
  • More energy-efficient (less wasted energy)
  • Longer-lasting (no filament to burn out)

Additionally, because the semiconductor material can be altered, manufacturers can create different colors of light (e.g., red, green, blue, white) without the need for filters.

How Electroluminescence Works in an LED Downlight:

In a downlight:

  • The driver supplies the correct voltage.
  • This activates electroluminescence in the LED chip.
  • The chip emits light, which is directed and diffused by optical elements, such as reflectors and lenses.

All this happens within milliseconds, resulting in instant-on, flicker-free light that’s both bright and efficient.

Fun Fact:

The term “electroluminescence” was first observed in 1907, but it took nearly 60 years for the first visible-spectrum LED (red) to be invented in 1962. Today, it’s at the heart of modern lighting, TVs, phone screens, and more.

What Is the Difference Between LED Downlights and incandescent Lights?

When it comes to home or commercial lighting, many people wonder: Should I go with modern LED downlights or stick with incandescent bulbs? The answer lies in understanding how each works and what makes them different.

Here’s a clear breakdown of how LED downlights differ from incandescent lights across key categories:

1. Working Principle

  • LED Downlights:
  • Operate based on electroluminescence. A semiconductor chip emits light when current passes through it—no filament, no heat-based light.
  • Incandescent Bulbs:
  • Produce light by heating a tungsten filament until it glows. This process converts a large portion of energy into heat, not light.

Verdict: LED is far more efficient because it doesn’t rely on heat to produce light.

2. Energy Efficiency

  • LED Downlights:
  • Use up to 80–90% less energy than incandescent bulbs. A typical 10W LED can replace a 60W incandescent bulb.
  • Incandescent Lights:
  • Highly inefficient—only about 10% of the energy goes to producing light; the rest is lost as heat.

Verdict: LED wins for energy savings and lower electricity bills.

3. Lifespan

  • LED Downlights:
  • Can last 25,000 to 50,000 hours, depending on usage and quality.
  • Incandescent Lights:
  • Typically last 1,000 to 2,000 hours before burning out.

Verdict: LED downlights last 25 times longer, reducing replacement frequency and maintenance.

4. Heat Emission

  • LEDs:
  • Produce minimal heat, thanks to efficient energy conversion and built-in heatsinks.
  • Incandescents:
  • Get extremely hot during operation, posing a risk of burns or fire near insulation or sensitive materials.

Verdict: LEDs are safer and cooler.

5. Light Quality and Options

  • LED Downlights:
  • Offer a wide range of color temperatures (2700K–6500K), high CRI (Color Rendering Index), and dimming capabilities. They’re also available in adjustable beam angles.
  • Incandescent Lights:
  • Provide a warm yellowish glow (around 2700K) with high CRI, but lack versatility in tone or brightness.

Verdict: LEDs give more control over ambiance and functionality.

6. Environmental Impact

  • LEDs:
  • Are mercury-free, recyclable, and reduce carbon footprint due to low energy use.
  • Incandescents:
  • Consume more power, have shorter life cycles, and contribute more waste and emissions.

Verdict: LED downlights are the eco-friendlier choice.

Quick Comparison Table:

FeatureLED DownlightsIncandescent Lights
Lifespan25,000–50,000 hours1,000–2,000 hours
Energy EfficiencyVery HighVery Low
Heat OutputLowHigh
DimmableYes (with compatible driver)Yes (basic dimming)
Color TemperatureAdjustable (2700K–6500K)Fixed (2700K)
Environmental ImpactLow (eco-friendly)High (more waste, heat)
Cost (Initial)HigherLower
Cost (Long-Term)Much LowerHigher due to replacements and energy use

How Energy-Efficient Are LED Downlights?

LED downlights are widely recognized as one of the most energy-efficient lighting solutions available today. Whether you’re lighting a home, office, retail store, or hotel lobby, switching to LED downlights can drastically cut energy usage while maintaining or even improving lighting quality.

Let’s break down exactly how and why LED downlights are so efficient.

1. Low Power Consumption, High Light Output

LED downlights consume far less electricity compared to traditional lighting:

  • A 10W LED downlight can provide the same brightness as a 60W incandescent bulb.
  • That’s up to 85% energy savings without sacrificing illumination.

💡 Example:

Replacing ten 60W incandescent downlights with 10W LEDs can save 500 watts per hourthat’s a huge reduction on your power bill over time.

2. No Wasted Heat = More Light Per Watt

Incandescent and halogen lights waste most of their energy as heat, not light.

LED downlights, on the other hand:

  • Convert more than 90% of electrical energy into light.
  • Emit very little heat, making them safer and more efficient.

This efficiency is measured in lumens per watt (lm/W):

  • LED Downlights: 80–120 lm/W (some advanced models exceed 150 lm/W)
  • Incandescent Bulbs: 10–15 lm/W

Conclusion: More light, less energy. Simple.

3. Longevity Reduces Total Energy Use Over Time

Because LED downlights last 25–50 times longer than incandescent bulbs, you:

  • Replace them far less often.
  • Use fewer materials and packaging.
  • Reduce the energy used in manufacturing and logistics.

This makes LED lighting sustainable and cost-efficient in the long run.

4. Smart Features Enhance Efficiency

Many LED downlights come with energy-saving enhancements:

  • Dimmable drivers reduce power usage when full brightness isn’t needed.
  • Motion sensors and daylight sensors help avoid unnecessary usage.
  • Smart home integration allows scheduled or voice-controlled lighting.

These features further reduce wasted energy in both residential and commercial spaces.

5. Environmental Impact

Because they use less energy:

  • LED downlights help reduce CO₂ emissions from power plants.
  • They contain no toxic materials (like mercury in CFLs).
  • Lower replacement rates reduce waste in landfills.

In large buildings or entire homes, the cumulative effect of LED efficiency significantly reduces your carbon footprint.

Real-World Efficiency Comparison (Yearly Use)

Light TypeWattageDaily Use (hrs)Annual Energy (kWh)Cost (@ $0.12/kWh)
60W Incandescent60W4 hrs87.6 kWh$10.51
10W LED Downlight10W4 hrs14.6 kWh$1.75

Multiply that savings by every downlight in your home or office—it adds up fast.

How to Install LED Downlights Safely and Correctly?

Installing LED downlights might seem straightforward, but doing it safely and correctly ensures long-term performance, prevents electrical hazards, and protects your ceiling structure. Whether you’re a homeowner planning a DIY project or an electrician aiming for best practices, this guide will walk you through the key steps and safety checks.

Note: If you’re not confident working with electrical wiring, always hire a licensed electrician.

Tools & Materials You’ll Need:

  • LED downlight kits
  • Compatible LED driver (if not built-in)
  • Voltage tester
  • Hole saw or plaster saw
  • Power drill
  • Wire stripper
  • Screwdriver
  • Safety goggles & gloves
  • Insulation clearance accessories (IC-rated can or mounting bracket)

1. Turn Off the Power

Before you touch anything, go to your circuit breaker and switch off the power to the area you’ll be working on.

Use a voltage tester at the ceiling light point to confirm there’s no live current.

Safety first. Always.

2. Measure and Cut the Ceiling Hole

  • Use the downlight’s cut-out template or measure its diameter (commonly 70mm–90mm).
  • Mark the center on the ceiling using chalk or pencil.
  • Use a hole saw or drywall saw to cut a clean, round opening.

Tip: Check above the ceiling for joists, pipes, or insulation before cutting.

3. Connect the Wiring

  • Pull the existing electrical wire through the hole.
  • Strip 1–2 cm of insulation from the wire ends.
  • Connect the wires to the LED driver or terminal block:
    • Live (Brown or Black) → L
    • Neutral (Blue or White) → N
    • Earth/Ground (Green/Yellow) → Ground terminal (if the fixture requires grounding)

Make sure all terminals are tight and secure. If the driver is detachable, plug it into the LED downlight.

4. Check for Heat Clearance

LEDs emit less heat than traditional lights, but they still need airflow for the heatsink to work properly. Ensure:

  • The downlight is IC-rated if being installed near insulation.
  • There’s at least 30–50 mm clearance around the fixture for ventilation.

Pro tip: Choose fire-rated or insulation-compatible (IC) downlights if you’re working with ceiling insulation.

5. Insert the Downlight

  • Compress the spring-loaded clips and insert the fixture into the ceiling cut-out.
  • The clips will spring back and secure the downlight tightly against the plasterboard.

Ensure it sits flush with the ceiling for a clean, professional look.

6. Power On and Test

  • Turn the power back on at the circuit breaker.
  • Test the switch to make sure the downlight turns on.
  • If it’s dimmable, test the dimmer to ensure compatibility. Not all LED drivers work with older dimmer switches.

7. Final Safety Checks

  • No exposed wires?
  • Fixture stable and flush?
  • No overheating during first 10–15 minutes of operation?

If everything checks out, your installation is complete!

Common Mistakes to Avoid:

  • ❌ Installing near insulation without IC-rated housing.
  • ❌ Forgetting to turn off power before wiring.
  • ❌ Using a non-dimmable driver with a dimmer switch.
  • ❌ Cutting the ceiling hole too large.
  • ❌ Failing to check clearance above the ceiling.

Bonus Tips:

  • Use a stud finder to avoid joists.
  • Choose LED downlights with plug-and-play connectors for easier future replacements.
  • Install one light first as a test before cutting multiple holes.

What Are the Different Types of LED Chips and Drivers Used?

When choosing or installing LED downlights, it’s important to understand the types of LED chips and drivers involved. These two components largely determine the brightness, efficiency, lifespan, and performance of your LED fixtures.

Let’s explore each in detail.

Part 1: Types of LED Chips Used in Downlights

An LED chip is the light-emitting part of the downlight. It converts electricity into light via electroluminescence. There are three main types commonly used in downlights:

1. SMD (Surface-Mounted Diode)

  • How It Works:
  • Multiple tiny LED chips are mounted directly onto a flat PCB (Printed Circuit Board).
  • Features:
    • Excellent for wide light distribution.
    • Good color consistency and lumen output.
    • Comes in variants like SMD2835, SMD5050, SMD5730, etc.
  • Used In:
  • General-purpose downlights, panel lights, strip lights.

Ideal for homes and offices where even, soft lighting is needed.

2. COB (Chip-on-Board)

  • How It Works:
  • Multiple LED chips are packed tightly on a single substrate to form one high-intensity light source.
  • Features:
    • Produces brighter and more focused light.
    • Offers high lumen output per watt.
    • Better thermal performance than SMD.
  • Used In:
  • Spotlights, accent lighting, and commercial downlights.

Ideal for high-ceiling or task lighting where brightness is key.

3. MCOB and MCM (Multi-Chip Modules)

  • MCOB (Multi-Chip on Board):
  • Like COB but allows for better thermal control and higher wattages.
  • MCM (Multi-Chip Module):
  • Integrates multiple COBs into one larger system for very high-output applications.

Used in industrial downlights and commercial fixtures.

Part 2: Types of LED Drivers Used in Downlights

The LED driver is an essential component that converts high-voltage AC (Alternating Current) to low-voltage DC (Direct Current) and regulates the power flow to the LED chip.

1. Constant Current (CC) Drivers

  • How It Works:
  • Provides a fixed current with a variable voltage output based on the LED’s load.
  • Benefits:
    • Precise brightness control
    • Longer LED life
    • Prevents overheating and flickering
  • Commonly Used In:
  • Most high-quality LED downlights and COB-based fixtures.

Preferred for consistent, flicker-free lighting.

2. Constant Voltage (CV) Drivers

  • How It Works:
  • Provides a fixed voltage (typically 12V or 24V), while current varies.
  • Benefits:
    • Simplified circuit
    • Good for multiple LEDs in parallel
    • Used where voltage needs to be stable (e.g. LED strips)
  • Commonly Used In:
  • LED strips, signage, and some low-voltage downlights.

Not ideal for high-power or single-point downlights.

3. Dimmable Drivers

  • Types Include:
    • TRIAC (leading-edge dimming)
    • 0-10V (voltage-based dimming)
    • DALI (digital dimming for smart systems)
    • PWM (pulse-width modulation for precise control)
  • Used When:
  • You want adjustable brightness or smart home integration.

Always match the dimmer switch type with the compatible driver!

4. Integrated Drivers (Built-In)

  • In some downlights, the driver is built into the fixture, making installation easier.
  • Ideal for plug-and-play applications, especially in homes.

Can limit future upgrades or repairs.

Quick Summary Table:

Component TypeVariantsBest ForKey Features
SMD2835, 5050, etc.General lightingWide light, energy-efficient
COBHigh-power LEDSpot/down lightingFocused beam, compact
CC DriverMost downlightsLong lifeRegulates current precisely
CV DriverLED stripsParallel lightingConstant voltage output
Dimmable DriverTRIAC, DALI, PWMSmart controlAdjustable brightness
Integrated DriverPlug-in kitsDIY installSimple but less modular

Final Tip:

When buying or installing LED downlights, always check:

  • Driver type (CC or CV)
  • Voltage and current rating
  • Chip type (SMD or COB)
  • Dimming compatibility

Choosing the right combination ensures your lights are bright, stable, and built to last.

What Are the Applications of LED Downlights in Modern Lighting Design?

LED downlights are no longer just a functional lighting option—they’re a core element in modern lighting design, valued for their versatility, efficiency, and sleek aesthetics. Whether it’s a cozy living room or a high-end retail store, LED downlights can shape mood, enhance visual appeal, and improve functionality.

Let’s explore how and where LED downlights are used in today’s spaces.

1. Residential Lighting

In homes, LED downlights are used to create clean lines, reduce clutter from hanging fixtures, and offer focused illumination exactly where it’s needed.

Popular uses:

  • Living Rooms: Ambient ceiling lighting or accent lighting above artwork or shelves.
  • Kitchens: Task lighting over countertops, islands, and sinks.
  • Bathrooms: Moisture-resistant downlights in ceilings or over mirrors.
  • Bedrooms: Soft ambient lighting with dimmable features for relaxing moods.
  • Hallways and Staircases: Low-profile, glare-free lighting for safety and visibility.

Why they’re preferred: Sleek, flush-mount design that blends into ceilings while offering precise light control.

2. Commercial & Office Spaces

In work environments, lighting plays a major role in productivity and visual comfort. LED downlights are ideal for uniform, glare-free, and energy-efficient lighting across office floors and meeting rooms.

Applications:

  • Open Offices: Evenly distributed general lighting for desk areas.
  • Conference Rooms: Adjustable downlights for presentations or video calls.
  • Retail Stores: Highlighting displays, shelves, and featured products with directional downlights.
  • Hotels & Lobbies: Creating sophisticated ambiance with dimmable or color-tunable downlights.

Bonus: Many commercial-grade downlights support DALI or 0-10V dimming for smart lighting systems.

3. Hospitality & Retail Design

LED downlights are widely used in restaurants, hotels, spas, and luxury retail for their ability to set the tone of a space.

Use cases:

  • Accent Lighting: Spot downlights aimed at merchandise, art, or design features.
  • Mood Lighting: Warm white downlights to create inviting atmospheres in cafes or lounges.
  • Recessed Architectural Lighting: Minimalist lighting in ceilings, walls, or even furniture to elevate design aesthetics.

Why it matters: Light can change how customers feel and behave in a space. Downlights let designers control intensity, warmth, and direction.

4. Healthcare & Educational Institutions

Downlights are also critical in spaces that require uniform, non-glare, and efficient lighting for long hours of use.

Applications:

  • Hospitals & Clinics: Hygienic, easy-to-clean fixtures with consistent lighting for examination rooms and corridors.
  • Classrooms & Libraries: Visual comfort for reading and learning without eye strain.
  • Labs & Technical Rooms: Focused task lighting with excellent CRI (Color Rendering Index) for detail-oriented work.

5. Outdoor and Semi-Outdoor Spaces

IP-rated (Ingress Protection) LED downlights are used in outdoor soffits, balconies, and entranceways to provide both functional and decorative lighting.

Common uses:

  • Canopy and Porch Ceilings
  • Recessed step or pathway lighting
  • Garden lighting with directional features

🌦️ Important: Use only waterproof and dustproof-rated downlights (IP44, IP65, etc.) for outdoor applications.

6. Smart and Mood-Based Lighting Systems

With the rise of smart homes and IoT lighting, LED downlights can be integrated into systems that:

  • Change color temperature (Tunable White)
  • Adjust RGB colors (Smart RGBW downlights)
  • Respond to voice commands or schedules

Used In:

  • Home theaters
  • Luxury living spaces
  • Smart commercial buildings

Example: Wake up to warm light that mimics the sunrise, or wind down with dimmed cool white in the evening.

LED downlights are no longer limited to justlighting up a room.They’re integral to modern design strategies that combine energy efficiency with form, function, and ambiance. Their adaptability makes them a go-to for architects, interior designers, electricians, and tech-savvy homeowners alike.

Structure and Working Principle of LED Downlights

LED downlights are a modern lighting solution that combines energy efficiency, long life, and aesthetic minimalism in a compact, ceiling-integrated design. At the heart of every LED downlight lies a well-engineered structure that supports its ability to produce powerful, efficient, and safe light.

Let’s take a detailed look at both the structure and working principle of LED downlights.

Structure of LED Downlights

An LED downlight is built from multiple layers of mechanical, optical, and electronic components, each with a specific function. Here’s a breakdown of the major parts:

1. LED Light Source (Chip/Module)

This is the core component that emits light. It’s typically:

  • SMD (Surface-Mounted Diode) or
  • COB (Chip-on-Board) type.

These chips are made of semiconductor materials and designed to deliver high brightness with low power consumption.

2. LED Driver

The driver converts high-voltage AC power (from the grid) into low-voltage DC power needed by the LED chip. It:

  • Regulates current
  • Protects the LED from voltage spikes
  • Enables dimming in compatible models

3. Heatsink

LED chips produce some heat during operation. The heatsink, usually made from aluminum, dissipates this heat away from the chip to maintain efficiency and extend lifespan.

4. Optical Lens or Diffuser

An optical lens or frosted diffuser helps control:

  • Beam angle (narrow/focused or wide/flooded)
  • Light diffusion, reducing glare
  • Softness of light

Some designs include reflector cups to concentrate light downward more effectively.

5. Housing and Trim

The outer casing protects the internal components and gives the downlight its clean, recessed appearance. Trim finishes come in various colors and textures to match interior decor.

6. Mounting Clips or Brackets

These spring-loaded clips hold the downlight securely in the ceiling cut-out without the need for screws. They make installation easy and tool-free.

7. Optional Add-ons

  • Smart modules (Wi-Fi, Bluetooth)
  • Motion/daylight sensors
  • Dimmable drivers
  • Color temperature switches (CCT tunable)

Working Principle of LED Downlights

The working mechanism of an LED downlight is based on the electroluminescence phenomenon.

Here’s how it works step-by-step:

Step 1: Power Supply

When the wall switch is turned on, AC power (usually 110V or 220V) flows to the LED downlight.

Step 2: Power Conversion by the Driver

The LED driver immediately steps down and converts this AC power into low-voltage DC current. It also stabilizes the output to prevent flickering or overheating.

Step 3: Electroluminescence in the LED Chip

This DC power is then supplied to the LED chip, which contains a P-N junction diode:

  • Electrons move from the N-side to the P-side.
  • Holes move in the opposite direction.
  • When they meet, they recombine and release energy in the form of photons—this is visible light.

This entire process is known as electroluminescence, and it happens instantly, with no warm-up time.

Step 4: Light Direction and Distribution

The light emitted from the chip passes through the diffuser or lens, which softens and spreads the light. The reflector or beam-shaping optics direct it downward in a uniform pattern—perfect for focused, clean lighting in modern spaces.

Step 5: Heat Management

As light is emitted, a small amount of heat is generated. The heatsink absorbs and releases this heat away from the chip, maintaining cool operation and protecting performance.

Summary Diagram Description

Insert Diagram Here: Cross-section of a typical LED downlight showing:

  • LED chip/module
  • Driver circuit
  • Heatsink
  • Lens/diffuser
  • Reflector
  • Trim and mounting clips
  • Power connection

Caption:Structure and internal components of an LED downlight and how they work together to produce efficient, cool, and focused light.”

The structure and working principle of LED downlights reflect the perfect balance of modern electronics, optical engineering, and energy-efficient design. Understanding these systems not only helps with installation and selection but also empowers users to make more sustainable lighting choices.

How Do LEDs Work According to Physics?

To understand how LEDs (Light Emitting Diodes) work through the lens of physics, we need to dive into semiconductors, energy bands, and a key principle called electroluminescence. Unlike traditional light sources, LEDs use quantum-level processes to convert electricity directly into visible light, making them one of the most efficient lighting technologies ever developed.

1. The Physics of Semiconductors

LEDs are made from semiconducting materials—usually Gallium Arsenide (GaAs), Gallium Nitride (GaN), or Indium Gallium Nitride (InGaN). These materials are specially engineered to form a P-N junction.

🔹 P-N Junction Explained:

  • P-type region (Positive): Contains “holes” (positively charged sites where electrons are missing).
  • N-type region (Negative): Contains free electrons.

At the boundary where P-type and N-type materials meet, we form a depletion region—a thin area with no free charge carriers.

2. Forward Bias and Electron Flow

When a forward voltage is applied (positive to P-type, negative to N-type):

  • Electrons in the N-region gain energy and move across the junction.
  • Simultaneously, holes in the P-region move toward the junction from the opposite side.

This movement causes recombination:

  • Electrons fall into holes, filling the vacancy.
  • This energy drop results in the release of a photon (a particle of light).

3. Electroluminescence – The Light-Emitting Effect

This photon emission is called electroluminescence—a phenomenon where a material emits light in response to an electric field or current.

Why it happens:

  • In physics terms, when electrons fall from a higher energy level (conduction band) to a lower energy level (valence band), the difference in energy (bandgap) is released as a photon.
  • The wavelength (color) of the emitted light depends on the bandgap energy of the semiconductor:
    • A smaller gap → Red/infrared light
    • A larger gap → Blue or ultraviolet light

Formula Tip:

Energy of emitted photon: E = hf

Where:

E = energy (in joules)

h = Planck’s constant (6.626 × 10⁻³⁴ J·s)

f = frequency of emitted light

4. Color and Material Engineering

LEDs are “tuned” to emit different colors by modifying the semiconductor’s chemical composition:

  • Red LEDs: Gallium Arsenide Phosphide (GaAsP)
  • Green LEDs: Gallium Phosphide (GaP)
  • Blue/White LEDs: Gallium Nitride (GaN)

White LEDs often use a blue LED chip combined with a phosphor coating that converts some of the blue light into other wavelengths to create white light.

5. Efficiency from a Physics Perspective

LEDs are efficient because:

  • No filament = no heat-based light emission.
  • No energy wasted as thermal radiation.
  • Direct energy-to-light conversion reduces energy loss—this is referred to as high luminous efficacy.

Compare that with incandescent bulbs, where most electrical energy is lost as infrared heat, and only ~10% becomes visible light.

Summary

LED downlights blend smart design and science for efficient, long-lasting lighting. Understanding how they work helps you choose better, install smarter, and save energy. Got questions? Contact Us Now!

Request A Quote for Your Lighting Projects!

Share This Post Now:

Hey there, I'm Michael

I’m from Upward Lighting. We are a professional Outdoor led lighting manufacture in China since 2009. We provide high quality led lighting products for indoor and outdoor projects.

Find Some Other Interesting Topics

Request a Free Quote

We will be back to you within 6 Hours

china led outdoor lighting

Landscape
And Facade

Lighting Fixtures

Architectural Floodlight | Led Wall Washer | Inground Light | Led Pool Light | Led Street Light | Palm Tree Light | Led Garden Light | Outdoor Wall Light | Led Stadium Light | Led Fountain Light | Led Highbay Light | Led Underwater Light

Download Our Full Catalog

Get notified about new products

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
