Struggling with complex arena lighting choices? Poor visibility and high energy bills can ruin the game day experience. The best solution combines quality LEDs, smart design, and intelligent controls.
The best lighting for an arena is a complete system, not just a single product. It uses high-quality LED fixtures combined with professional lighting design and a smart control system. This ensures optimal functionality, safety, and cost-efficiency for any event.
That answer sounds simple, but there are many details to consider. The type of lights, the design principles, and the specific technical values all matter. I have spent years helping clients navigate these choices. Let’s break down each part so you can make an informed decision for your next big project.

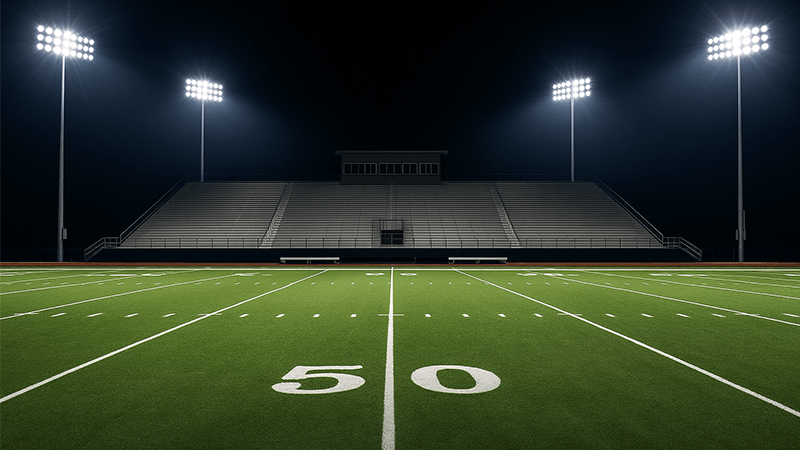

What kind of lights do stadiums use?
Remember the old, flickering stadium lights? They were expensive to run and took forever to warm up. Modern stadiums use a superior technology for instant, broadcast-quality illumination.
Today, stadiums almost exclusively use LED (Light Emitting Diode) lights. They replaced older Metal Halide (MH) lamps because LEDs offer better energy efficiency, longer lifespan, instant-on capability, and superior light quality control, which is essential for modern sports and broadcasting.
When I first entered the lighting industry, Metal Halide lamps were the standard for large venues. They produced a powerful light, but they came with many problems. They consumed a huge amount of energy. They also took 15 to 20 minutes to reach full brightness. This was a major issue if a power outage happened during a game. The long restart time could cause significant delays. Their color rendering was also not great, which made things look dull on television.
Then, LED technology changed everything. The switch to LED floodlights was a game-changer for stadium operators and project managers like you. I’ve seen firsthand how this transition has solved the old problems.
The Superiority of LED Technology
LEDs provide instant light the moment you flip the switch. There is no warm-up time, which is critical for live events. They also consume up to 75% less energy than Metal Halide lamps. This translates into massive savings on electricity bills over the years. A longer lifespan means less frequent and costly maintenance. This is a huge benefit for lights installed on very high poles.
Key Features of Modern Stadium LEDs
Modern stadium LEDs are more than just bright. They are precision instruments.
- Optics: Advanced lenses and reflectors direct light exactly where it is needed on the field. This prevents light from spilling into the surrounding neighborhoods, a problem known as light pollution. It also ensures uniform brightness across the entire playing surface.
- Durability: These lights are built to last. They have high IP (Ingress Protection) ratings, meaning they are protected against dust and water. They also have high IK (Impact Protection) ratings, so they can withstand impacts from balls or other objects.
- Controls: LED systems can be integrated with smart controls like DMX. This allows for dynamic lighting effects, such as flashing lights when a team scores. It also allows for dimming, which saves energy during practice sessions when full power is not needed.
This combination of efficiency, control, and durability is why LED is the only serious choice for new stadium projects today.
What are the 4 C’s of lighting?
Are you trying to compare different lighting options? It can feel confusing with so many technical terms. There is a simple framework that can help you evaluate and choose the best lighting.
The 4 C’s of lighting are a framework to evaluate light quality: Color Temperature (CCT), Color Rendering Index (CRI), Candela, and Contrast. Together, they determine how light looks, how well it reveals true colors, its intensity, and its evenness.
When I work with purchasing managers like Shaz, I always simplify things by focusing on these four core concepts. Understanding them is key to writing good specifications for your lighting tender. It ensures you get the quality you are paying for, not just a bright light. Let’s look at each one more closely.
Understanding Each "C"
These four elements work together to create a high-quality visual environment.
- Color Temperature (CCT): This measures how "warm" or "cool" the light appears. It is measured in Kelvin (K). Lower Kelvin values (like 2700K) produce a warm, yellowish light, similar to a traditional light bulb. Higher values (like 5000K or 6500K) produce a cool, bluish-white light that mimics daylight. For stadiums, a cooler CCT is usually preferred for alertness and clarity.
- Color Rendering Index (CRI): This measures how accurately a light source shows the true colors of objects. The scale goes from 0 to 100, with 100 being perfect, like natural sunlight. For sports broadcasting, a high CRI (above 80, preferably above 90) is essential so that team jerseys and field markings look vibrant and accurate on television.
- Candela: This measures the intensity of light in a specific direction. Think of it as the "throw" of the light beam. In a large arena, you need high candela values from fixtures mounted on tall poles to push enough light down to the playing surface. It is a critical factor in lighting design calculations.
- Contrast: This refers to the difference in brightness between the main subject (like a player) and the background. Good lighting design creates high contrast so that players and the ball stand out clearly for both spectators and cameras. This is achieved by creating uniform light on the field while keeping the surrounding areas slightly dimmer.
Here is a simple table to summarize:
| The "C" |
What It Measures |
Why It Matters for Arenas |
| Color Temperature |
The "coolness" or "warmth" of the light |
Affects visibility, alertness, and the look for TV broadcasts. |
| Color Rendering |
Accuracy of colors under the light |
Ensures team colors and logos look correct for fans and viewers. |
| Candela |
Intensity of light in one direction |
Determines if the light is strong enough to reach the field from high poles. |
| Contrast |
Difference in light levels |
Helps players and the ball stand out clearly against the background. |
By mastering these 4 C’s, you can better specify your needs and evaluate proposals from suppliers like me.

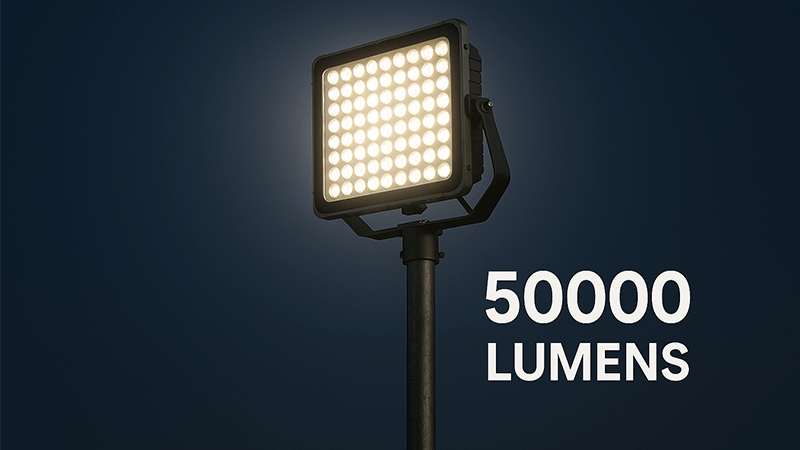

Is 50000 lumens too bright?
Worrying about getting the brightness wrong? Too little light is bad, but too much can be just as problematic. It can create glare and waste a lot of energy and money.
Whether 50,000 lumens is too bright depends entirely on the application. For a single fixture lighting a large area from a great height, like a stadium pole, 50,000 lumens might be perfect. For a small office or retail space, it would be extremely excessive.
This question comes up a lot. People see a large lumen number and think "brighter is better." But in lighting, "appropriate is better." I always explain that lumens are just one piece of the puzzle. The total lumens of a fixture tells you its total light output, but it doesn’t tell you where that light is going or how it will be perceived.
The key is not the lumen output of one bulb, but the final light level on the target surface, which we measure in lux or foot-candles.
Context is Everything
Think about it this way. A 50,000-lumen fixture is a very powerful light source.
- In a Stadium: When you mount this fixture on a 30-meter pole, the light has a long way to travel. By the time it reaches the field, the light has spread out. You need that high initial output to achieve the required 500 or 1000 lux on the grass. In this case, 50,000 lumens is not too bright; it’s necessary. In fact, many stadium lights are 100,000 lumens or more.
- In a Warehouse: If you mount that same 50,000-lumen fixture from a 10-meter ceiling in a warehouse, the light level on the floor would be incredibly high. It would create harsh glare, making it uncomfortable and unsafe for workers. A fixture with 15,000 to 20,000 lumens would be more appropriate.
- In an Office: A standard office requires about 500 lux on the desk surfaces. A single 50,000-lumen fixture would be blinding. It would be a massive waste of energy and create an unusable workspace.
The Role of Lighting Design
This is why professional lighting design is so important. We use special software like DIALux to simulate the outcome before a single light is installed. We input the dimensions of the arena, the height of the poles, and the specifications of the light fixtures. The software then calculates the exact light level (lux) at every point on the field. This process ensures we use the right number of fixtures with the right lumen output and the right beam angle to achieve the target light level perfectly, without wasting energy or creating glare. So, don’t focus only on the lumen number. Focus on the final result you need.
Is 6500K better than 4000K?
Choosing the right color of white light is crucial. It affects how people feel and how clearly they see. Is the crisp, blue-white of 6500K a better choice than the neutral 4000K?
Neither 6500K nor 4000K is inherently "better." The best choice depends on the application. 6500K is a very cool, blue-tinted light that mimics daylight and enhances focus, making it good for task-oriented or televised sports. 4000K is a neutral white, which is often more comfortable for general-purpose areas.
I’ve seen many debates over color temperature. Some clients insist on the "daylight" look of 6500K, while others find it too harsh or sterile. The decision impacts the atmosphere of the venue and the quality of a video broadcast. For a multipurpose arena that hosts both sports and concerts, this choice is especially important.
Let’s break down the specific use cases to help you decide.
When to Choose 6500K (Cool Daylight)
6500K is at the high end of the CCT scale. It is a very crisp, blue-toned white light.
- Professional Sports & Broadcasting: This is the primary application in an arena. 6500K light has a high blue light content, which increases alertness and perceived brightness. It makes the field look vibrant on HD and 4K cameras. Most international broadcasting standards for sports like football or tennis recommend a CCT in the 5500K to 6500K range to ensure colors are true and the action is crystal clear for viewers at home.
- Task-Oriented Areas: In places like medical rooms or security offices within the arena, the high alertness promoted by 6500K light can be beneficial.
However, the intensity of 6500K can feel clinical or cold. It’s not typically used in spectator concourses or VIP lounges where you want a more relaxed atmosphere.
When to Choose 4000K (Neutral White)
4000K sits in the middle of the scale. It is a clean, neutral white light without the yellow tones of warm light or the blue tones of cool light.
- Multipurpose Venues: If your arena hosts concerts, trade shows, and community events in addition to sports, 4000K can be a more versatile choice. It is less harsh than 6500K and creates a more welcoming environment.
- Spectator Areas: For lobbies, concession stands, and hallways, 4000K provides clear visibility without feeling as sterile as 6500K. It offers a good balance between comfort and clarity.
- Training Facilities: For non-televised training, 4000K can be less fatiguing on the eyes over long periods compared to the intensity of 6500K.
Here’s a comparison to guide your decision:
| Feature |
4000K (Neutral White) |
6500K (Cool Daylight) |
| Appearance |
Clean, balanced white |
Crisp, blue-white, like daylight |
| Atmosphere |
Neutral, professional, comfortable |
Alert, energetic, focused |
| Best For |
Multipurpose use, spectator areas |
Professional sports, TV broadcasting |
| Broadcasting |
Can be used, but may need color correction |
Often preferred for HD/4K cameras |
The ultimate decision often involves a mix. We use 6500K for the field of play and 4000K for the surrounding public areas to get the best of both worlds.
Conclusion
The best arena lighting is a total solution. It combines high-quality LEDs, expert design, and smart controls to guarantee performance, safety, and efficiency for every event.
