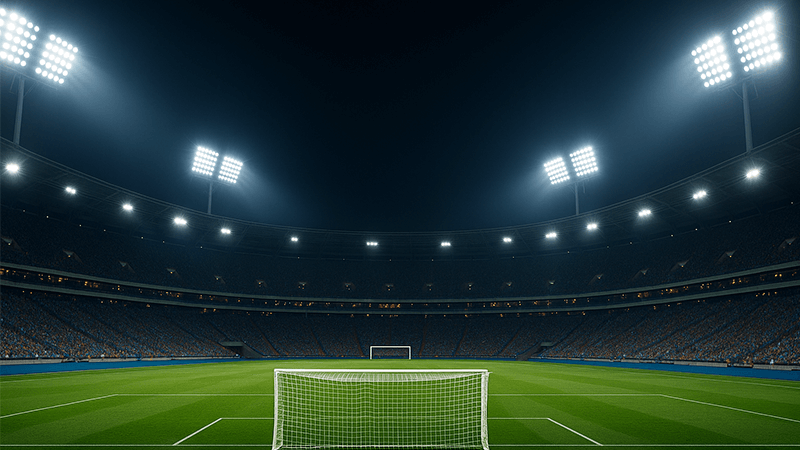

Struggling with uneven lighting that ruins the game experience? Poorly lit fields cause glare and shadows, frustrating players and fans. The solution is specialized, high-performance lighting systems.
Modern football stadiums primarily use high-mast LED floodlights. These fixtures replaced older metal halide technology because they offer superior brightness, energy efficiency, flicker-free performance for broadcasting, and advanced controls. Their design ensures uniform field coverage and minimizes glare for players and spectators.
Choosing the right lights for a massive venue like a football stadium is a huge challenge. I’ve seen many projects where the focus was only on brightness, but that’s just one piece of the puzzle. The real difficulty lies in achieving that brightness reliably, night after night, for years, without failing under harsh weather conditions. It’s about creating a system where high performance and extreme stability can coexist. Let’s explore how the top stadiums achieve this.

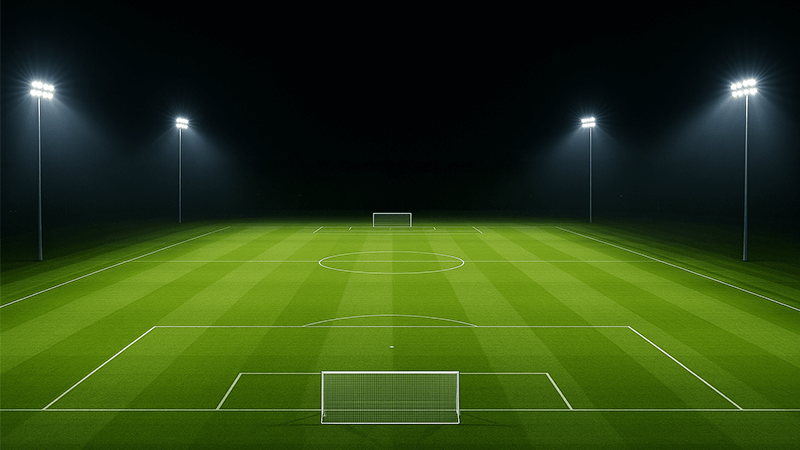

A massive stadium seems impossible to light evenly. Any dark spot or shadow could mean a missed play for the athletes. The solution is a system of incredibly powerful, precision-engineered lights.

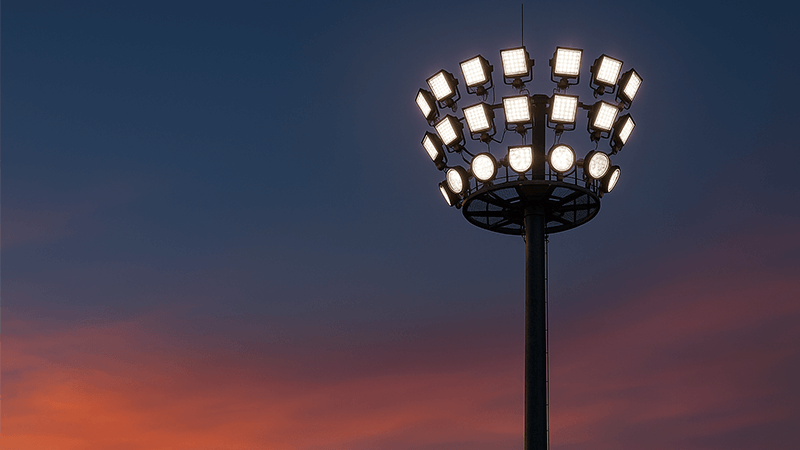

High-mast LED floodlights are the technology used to light up a football stadium. These lights are mounted on very tall poles surrounding the pitch to project powerful, uniform illumination down onto the playing surface, eliminating shadows and ensuring perfect visibility.
When we talk about lighting up a stadium, we are not just talking about making things visible. We are creating an environment suitable for players, thousands of fans, and high-definition television broadcasts. This task falls to high-mast LED floodlights, which are true marvels of engineering. The "high-mast" part is critical; poles often stand between 30 and 60 meters tall. This height allows the light to be projected down at steep angles, which is the secret to reducing glare for players when they look up to track the ball. It also helps in spreading the light more evenly across the entire field.

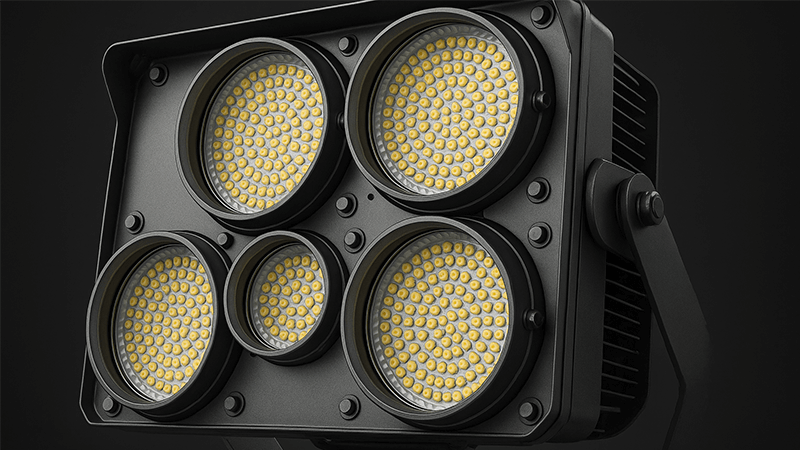

From my experience in manufacturing, the anatomy of the light fixture itself is where the real challenge lies. The goal is to balance performance with unwavering reliability. Here’s a breakdown:
The Anatomy of a Modern Stadium Light
- LED Chips: These are the source of the light. We have to select chips that not only produce a high lumen output but also have a high Color Rendering Index (CRI), usually above 80, to make colors look natural for TV cameras.
- Optics: Each LED chip has a lens in front of it. These optics are precisely engineered to control the beam of light, directing it exactly where it needs to go on the field and preventing light spill into the surrounding neighborhood.
- Driver: This is the power supply for the LEDs. A high-quality driver is essential for stability. It protects the light from power surges and ensures a consistent, flicker-free output, which is absolutely necessary for slow-motion replays.
- Housing & Heat Sink: The housing protects the internal components from weather, requiring high IP (Ingress Protection) and IK (Impact Protection) ratings. The integrated heat sink is crucial for dissipating the immense heat generated by the powerful LEDs, preventing them from degrading and failing prematurely.
I remember a client in the Middle East who was focused only on the lumen count. But in a hot climate, without a robust heat sink and durable housing, even the brightest light would fail quickly. We had to show him that true quality comes from a system where every component is designed for long-term stability.
| Component |
Priority for Stadium Lighting |
Why It’s Critical |
| LED Chips |
High CRI, Luminous Efficacy |
For broadcast quality and energy efficiency. |
| Optics |
Precision Beam Control |
To ensure uniform lighting and reduce light pollution. |
| Driver |
Flicker-Free Output, Surge Protection |
For stable performance and camera compatibility. |
| Housing |
High IP/IK Ratings, Thermal Management |
For durability in all weather and long-term reliability. |
What are stadium lights?
The term "stadium lights" sounds simple, but they are far from just big, bright bulbs. Choosing the wrong ones leads to massive energy costs, poor visibility, and broadcast issues.
Stadium lights are high-intensity artificial lights engineered for large outdoor venues. They are defined by their very high lumen output, precise beam angles, and durable, weather-resistant construction. Modern LED versions also feature advanced controls for dynamic effects and TV broadcasting needs.
Stadium lights are a very specific category of lighting. Their primary job is to replicate daylight conditions during the night with enough intensity and quality for high-speed camera work. A few key specifications separate a true stadium light from a standard floodlight. Getting these right is non-negotiable, but ensuring they remain stable over a 10-year lifespan is the real manufacturing challenge.
For a purchasing manager like Shaz, understanding these metrics is key to sourcing a reliable product. Anyone can promise a high lumen number, but it’s the other specifications that reveal the true quality and longevity of the fixture.
Key Specifications That Define a Stadium Light
- Luminous Efficacy (Lumens per Watt): This measures how efficiently the light converts electricity into visible light. Early metal halide lamps were around 75-100 lm/W. Modern LEDs can easily exceed 150 lm/W, leading to massive energy savings—often over 60%.
- Color Rendering Index (CRI): This is a scale from 0 to 100 on how accurately the light shows the true colors of objects. For stadiums, a CRI of 80+ is the minimum for good broadcast quality, making team jerseys and the green pitch look vibrant and natural.
- Television Lighting Consistency Index (TLCI): While CRI is for the human eye, TLCI is specifically for the camera. A high TLCI score (ideally 90+) ensures that colors look correct on screen without requiring major adjustments in post-production. It also guarantees the light is flicker-free, which is vital for clear slow-motion replays.
- IP and IK Ratings: These tell you how durable the light is. An IP rating like IP66 means it’s protected against dust and powerful jets of water. An IK rating, such as IK08, indicates its resistance to physical impacts. These are essential for any outdoor fixture expected to last for years.
The move from old metal halide technology to LED was driven by the need to improve these metrics while also improving reliability.
| Feature |
Metal Halide |
High-Quality LED |
| Efficacy |
75-100 lm/W |
140-170+ lm/W |
| CRI |
65-70 |
80-95+ |
| Flicker |
Noticeable on slow-motion replay |
None |
| Lifespan |
12,000-20,000 hours |
50,000-100,000+ hours |
| Control |
On/Off |
Instant On/Off, Dimmable |
Which type of lightning scheme is used in stadiums?
Just putting up powerful lights isn’t enough for a stadium. Bad placement creates distracting shadows and blind spots, ruining the game for everyone. A strategic lighting scheme is absolutely essential.
Stadiums typically use one of two lighting schemes: a four-corner high-mast system or a lateral (side) lighting system. The choice depends on the stadium’s architecture and size, with the goal of achieving high uniformity and minimal glare for players.
A lighting scheme, or lighting design, is the master plan for where to place the lights and how to aim them. For a manufacturer, this is where our products must prove their flexibility. We need to offer a variety of beam angles and mounting options to fit these schemes perfectly. The ultimate goal is to deliver light that is both powerful and comfortable, which is a difficult balance to strike. You need high uniformity (an even spread of light) and low glare (light that doesn’t shine directly into players’ or spectators’ eyes).
I’ve worked with many contractors on this, and the design phase is the most critical. This is where we prevent the problems that our client, Shaz, would later have to deal with if the wrong scheme was chosen. The two main approaches are:

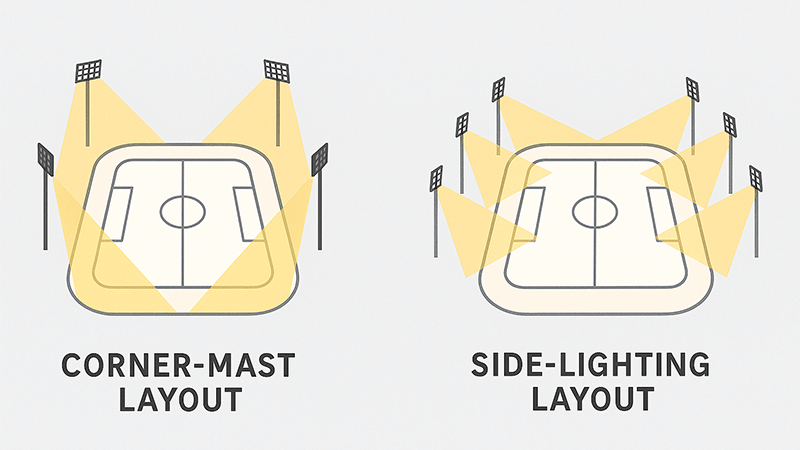

Common Stadium Lighting Layouts
- Four-Corner Mast System: This is a classic layout. Four very tall masts are placed at the corners of the stadium. This works well for many football pitches because it provides good lighting from angles that are out of the players’ and main cameras’ primary line of sight. However, it can create shadows in the middle of the field if not designed correctly. Success here depends on using a mix of narrow and wide beam angles to "throw" the light all the way to the center of the pitch while also covering the areas near the corners.
- Lateral / Side Lighting System: In this scheme, lights are mounted along the two long sides of the pitch, either on multiple shorter poles or directly on the roof structure of the stands. This layout is excellent for achieving high uniformity and is often preferred for top-tier professional stadiums because it provides great vertical illumination. This means the players are well-lit from the side, which is ideal for television broadcasting. The main challenge here is managing glare, as the lights are closer to the spectators’ field of view. This requires specialized optics and shielding.
The table below breaks down the pros and cons of each system.
| Lighting Scheme |
Advantages |
Disadvantages |
Best For |
| Four-Corner Mast |
Fewer poles needed, less obstruction of view for some seats. |
Can create shadows in the center, more difficult to achieve high uniformity. |
Multi-purpose stadiums, venues where side mounting is not possible. |
| Lateral / Side Lighting |
Excellent uniformity, great for TV broadcasting (high vertical illuminance). |
Can cause glare if not shielded properly, may require more fixtures. |
Professional football stadiums, venues with existing roof structures. |
You know they need to be bright, but what exactly are those lights? A mistake here means poor performance and complaints. The details matter, from the beam angle to the color temperature.
The lights on football pitches are high-power LED floodlights with precision optics. They are engineered with specific beam angles (from narrow to wide) to target different zones of the field, ensuring completely uniform coverage without any dark spots.
Going one level deeper, the individual "lights" are more than just fixtures; they are precision instruments. As a manufacturer, this is where our expertise in customization comes into play. We don’t just sell a "stadium light." We provide a system of lights, each with a specific role in the overall lighting design. This is how we overcome the challenge of delivering perfect performance and reliability at the same time. The product has to be both powerful and smart.
A purchasing manager like Shaz would need to specify these details to ensure the project’s success. Simply ordering 200 units of a single type of light will not work. You need a mix tailored to the lighting design.
The Technical Details That Matter
- Beam Angle: This is the angle at which light spreads out from the fixture. On any given stadium project, we will use a combination of beam angles.
- Narrow Beams (e.g., 10-25 degrees): These are like spotlights. They are used on the tall corner masts to project light over a long distance to the center of the field.
- Medium Beams (e.g., 30-60 degrees): These are the workhorses, used to light the main sections of the playing surface.
- Wide Beams / Asymmetric Beams (e.g., 90+ degrees): These are used to illuminate the areas closest to the lights without spilling light into the stands or creating glare. Asymmetric optics are especially useful as they push the light forward, away from the pole and onto the field.
- Color Temperature (CCT): Measured in Kelvin (K), this defines the color appearance of the light. For stadiums, a cool white light around 5000K to 5700K is standard. This mimics natural daylight, which keeps players alert and ensures colors look accurate on camera.
- Controllability (DMX/DALI): Modern LED systems are integrated with control systems like DMX or DALI. This allows a central operator to dim the lights, turn individual fixtures on or off, and even create dynamic light shows for pre-game entertainment or to celebrate a goal. This adds value beyond simple illumination.
I have always stressed to my clients that the best lighting solution is a complete system. It’s the thoughtful combination of different beam angles and precise aiming, all powered by reliable drivers and controlled by a smart system, that creates that perfectly lit field you see on TV.
Conclusion
Football stadiums rely on high-mast LED floodlights. These systems are chosen for their brightness, energy efficiency, and broadcast-quality light, all designed within a precise scheme to ensure perfect, reliable illumination.
