How to Choose Solar LED Street Light: The Ultimate Guide

(Last Updated On: )

Given the many choices available, finding the perfect solar LED street light can be daunting. A poor choice can result in low brightness, short battery life, and inefficient solar charging. This guide breaks down key factors like lumens, battery capacity, solar panel type, and installation requirements to help distributors, wholesalers, traders, and retailers choose high-quality products.

Table of Contents

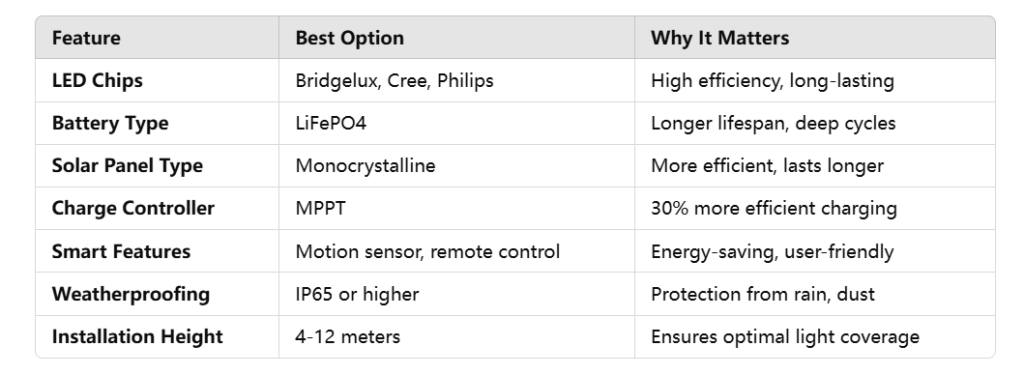

To choose the best solar street light, consider lumens per watt efficiency, battery capacity, solar panel quality, and installation environment. High-lumen LED chips, monocrystalline solar panels, MPPT charge controllers, and durable materials ensure long-lasting performance. Match brightness levels, panel wattage, and battery storage with local sunlight conditions for maximum efficiency.

Now, let’s explore each factor in detail to help you make an informed choice.

How Do I Choose a Good Solar Street Light?

A well-designed solar-powered street lighting system provides efficient illumination, reduces electricity costs, and enhances sustainability. However, choosing the right system requires understanding multiple technical factors. Below is a detailed buyer’s guide to help you make an informed decision.

1. Brightness & Lumens Per Watt Efficiency

The brightness of a solar street light is measured in lumens (lm), which indicates the total light output. However, the actual efficiency of an LED street light is determined by lumens per watt (lm/W)—a metric that reflects how much visible light is produced per unit of electrical power consumed.

A higher lm/W rating means the light is more efficient, consuming less energy while providing brighter illumination. This reduces battery drain and improves the longevity and reliability of the solar lighting system.

✅ Key Considerations for Optimal Brightness & Efficiency

1️⃣ Choose High-Efficiency LED Street Lights (130-200 lm/W)

  • Standard LED street lights typically offer 100-120 lm/W, but opt for models with at least 130-200 lm/W for superior performance.
  • Higher lm/W values translate to better energy savings and extended battery life, making them ideal for areas requiring continuous operation.

This efficiency ensures that the stored solar energy can sustain longer lighting hours even during cloudy days.

2️⃣ Use High-Quality LED Chips for Durability & Consistent Performance

The quality of LED chips directly impacts brightness, efficiency, and lifespan. Reputable brands offer higher luminous efficacy, stable performance, and better color rendering.

🔹 Top LED chip brands to consider:
✔ Cree – High efficiency, long lifespan, superior thermal management.
✔ Bridgelux – Cost-effective, durable, and widely used in street lighting.
✔ Philips Lumileds – Excellent energy efficiency, high color consistency.
✔ Osram – Reliable for high-power applications with excellent lumen maintenance.

Why do quality LED chips matter?

  • Longer lifespan: Premium LED chips can last 50,000+ hours compared to cheaper alternatives that degrade faster.
  • Better light consistency: No flickering or color shifts over time.
  • Higher efficiency: Maximizes power conversion, ensuring brighter light with less energy consumption.

3️⃣ Wide-Angle LED Optics for Improved Light Distribution

A well-designed solar street light should be bright and efficiently distributed across a wide area.

🔹 Why wide-angle LED optics are important?
✔ Reduces dark spots – Ensures uniform illumination across streets, parking lots, and pathways.
✔ Improves visibility – Enhances safety by covering more ground with minimal light loss.
✔ Maximizes efficiency – Directs light where needed, avoiding unnecessary dispersion.

💡 Pro Tip: For optimized roadway and area lighting, choose LED street lights with Type II, III, IV, or V beam patterns.

✅ Lumen Output Guide: Choosing the Right Brightness for Your Application

The ideal lumen output varies depending on the installation location, height, and intended use.

lumens output compare chart

💡 Pro Tip:

  • A lumen range of 4,000-8,000 lm for residential areas provides sufficient lighting without excessive energy use.
  • Opt for a higher lumen output (10,000+ lm) on highways and large open spaces to enhance visibility and road safety.

2. Battery Capacity & Type

The battery is the core component that stores energy from the solar panel. A high-capacity, long-life battery ensures reliable performance, even on cloudy days.

✅ Battery Type Comparison:

✅ Key Considerations:

  • Ensure battery capacity supports uninterrupted operation for 2-3 cloudy/rainy days.
  • LiFePO4 batteries last twice as long as lithium-ion, offering better stability in extreme temperatures.
  • Opt for deep-cycle batteries with a high Depth of Discharge (DoD) to maximize lifespan.

💡 Pro Tip: A larger battery is required for areas with frequent cloudy weather or higher night-time energy demand.

3. Solar Panel Type & Wattage

The solar panel converts sunlight into electrical energy. Choosing a high-efficiency panel ensures faster charging and better power retention.

✅ Solar Panel Type Comparison:

Solar Panel Type Comparison

✅ Key Considerations:

  • Monocrystalline solar panels provide the highest efficiency and longest lifespan.
  • Ensure the panel wattage matches the battery size for optimal energy balance.
  • Consider tilt-adjustable solar panels to maximize sunlight absorption.

💡 Pro Tip: If installing in shady or low-sunlight areas, use higher-wattage monocrystalline panels to compensate for energy loss.

4. MPPT vs. PWM Charge Controller

The charge controller regulates voltage and protects the battery from overcharging or deep discharge.

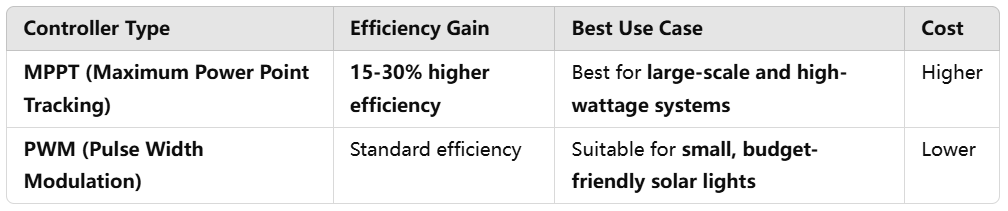

✅ MPPT vs. PWM Charge Controllers:

MPPT vs. PWM Charge Controllers

✅ Key Considerations:

  • MPPT controllers increase efficiency by optimizing voltage conversion.
  • PWM controllers work well for low-wattage solar lights but are less effective in varying sunlight conditions.
  • Built-in protection against short circuits, overcharging, and overheating is essential for long-term performance.

💡 Pro Tip: Always opt for MPPT controllers for better charging efficiency, especially in areas with fluctuating sunlight.

5. Motion Sensors & Smart Controls

Adding motion sensors and smart controls can significantly improve efficiency and security.

✅ Types of Motion Sensors:

  • Passive Infrared (PIR) Sensors – Detects body heat and movement, reducing power consumption.
  • Microwave Sensors – These are more sensitive than PIR and are ideal for detecting movement from greater distances.

✅ Key Features of Smart Controls:

  • Dimming functions adjust brightness based on activity levels.
  • Remote control & app integration for real-time monitoring.
  • Adaptive lighting technology extends battery life by adjusting brightness according to ambient light levels.

💡 Pro Tip: Motion sensor lights can extend battery life by up to 50% by dimming when no movement is detected.

6. IP Rating & Weather Resistance

Solar street lights must withstand harsh weather conditions, including rain, dust, and extreme temperatures.

✅ IP Rating Guide:

ip rating chart explain

💡 Pro Tip: For rainy or coastal areas, choose IP66 or higher to prevent water damage.

7. Pole Height & Installation Considerations

The correct pole height ensures optimal light distribution and visibility.

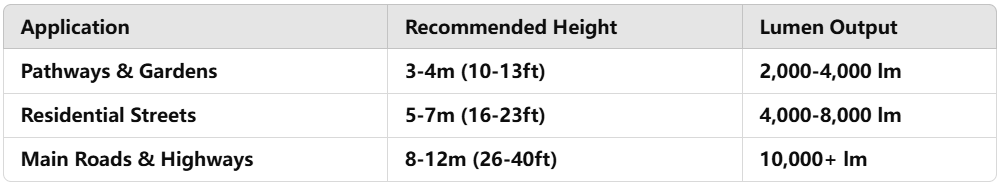

✅ Recommended Pole Heights:

💡 Pro Tip: Wider roads require higher poles and stronger LED output to ensure proper coverage.

8. LED Solar Street Light Installation Distance

Proper installation distance between solar street lights is essential to ensure uniform illumination, energy efficiency, and safety. The optimal spacing depends on lumen output, pole height, road width, and application type.

✅ Key Factors Affecting Installation Distance

1️⃣ Lumen Output & Wattage

  • Higher lumen output allows for broader light coverage, enabling a greater installation distance.
  • Lower-wattage lights require closer spacing to avoid dark spots.

2️⃣ Pole Height & Light Beam Angle

  • Taller poles increase coverage but require higher-powered LEDs.
  • Beam angle and optics determine how far the light is distributed.

3️⃣ Road Width & Application Type
Narrow streets need closer spacing for better illumination.
Wider roads require higher poles and more powerful LED lights.

different beam angle

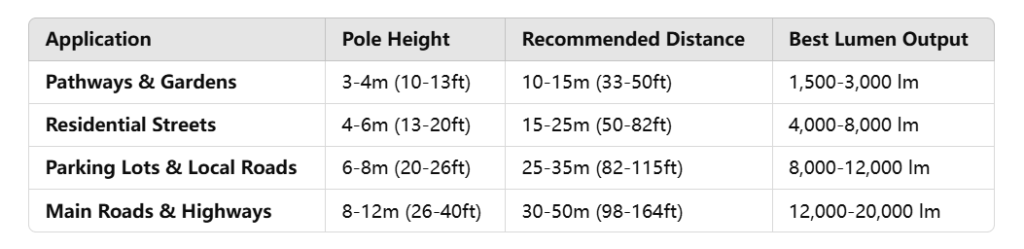

✅ Recommended Installation Distance for Different Applications

led solar street lights installation distance recommended

💡 Pro Tip:

  • Single-sided installation: Best for narrow roads and walkways.
  • Staggered installation: Used for wide roads to prevent dark zones.
  • Opposite-side installation: Suitable for highways to maximize visibility.

✅ Best Practices for Solar Street Light Installation

✔ Maintain uniform spacing to avoid gaps or excessive brightness variations.
✔ Consider battery backup for cloudy days to ensure consistent lighting.
✔ Use proper light distribution patterns (Type II, III, IV, V) based on road design.
✔ Ensure solar panels receive full sunlight exposure without shading.
✔ Adjust the tilt angle of solar panels to maximize energy absorption.

9. Material: Aluminium vs. Plastic for Solar Street Lights

The material of the housing and frame significantly affects the durability, heat dissipation, and overall lifespan of a solar street light. The most common materials are aluminum and plastic (polycarbonate or ABS).

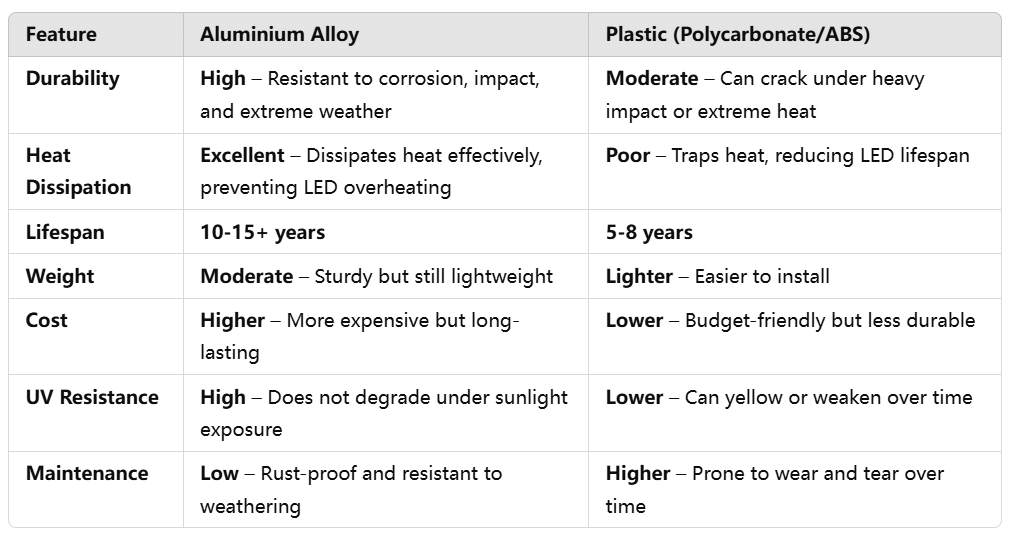

✅ Aluminium vs. Plastic: A Detailed Comparison

Aluminium vs. Plastic

✅ Key Considerations When Choosing Material:

  • Aluminum alloy is the best choice for high-quality, long-lasting solar street lights due to its superior strength, corrosion resistance, and heat dissipation.
  • Plastic-based housings are more affordable but are less durable, making them suitable for low-cost, short-term installations.
  • For extreme weather conditions (heavy rain, high heat, coastal areas), always opt for aluminum for better durability and longevity.

💡 Pro Tip: Aluminum is a must if you’re investing in a high-power solar street light (100W+) because it prevents overheating and extends LED lifespan.

How Many Lumens Are Good for an Outdoor Solar Light?

Choosing the correct lumen output for an outdoor solar light depends on its application, area size, and required brightness. Lumens measure the total visible light output; a higher lumen count ensures brighter illumination.

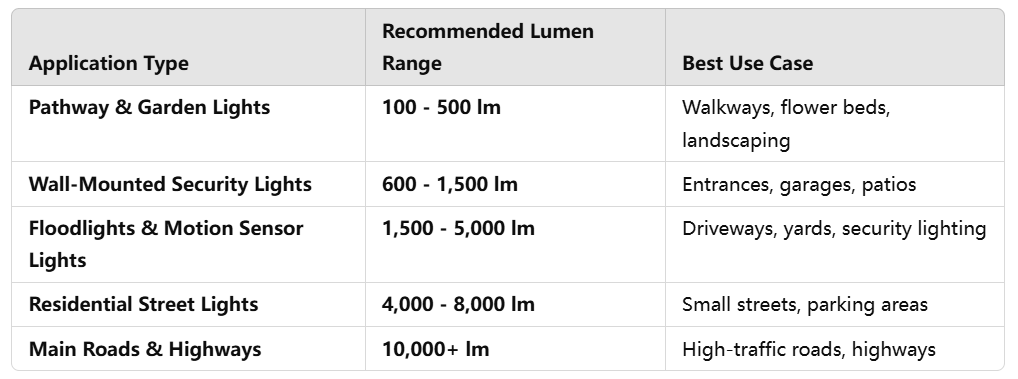

✅ Recommended Lumens for Different Outdoor Applications

Lumens for Different Outdoor Applications

💡 Pro Tip:

  • Lower lumens (100-500 lm) work best for ambient lighting in gardens and walkways.
  • Higher lumens (1,500+ lm) are needed for security and wide-area coverage.
  • Motion sensor lights conserve power by activating full brightness only when needed.

✅ Key Considerations When Choosing Lumens for Solar Lights

1️⃣ Purpose of the Light

  • Decorative lighting requires fewer lumens (e.g., garden lights ~200 lm).
  • Functional lighting (e.g., security lights) needs a higher lumen count (2,000+ lm).

2️⃣ Light Distribution & Beam Angle

3️⃣ Battery & Solar Panel Efficiency

  • Higher lumens require a larger battery capacity to ensure all-night lighting.
  • Opt for high-efficiency solar panels (monocrystalline) to sustain brightness.
lumens

Selecting the right lumen output for an outdoor solar light depends on where and how it will be used. Whether for garden lighting (100-500 lm), security (1,500+ lm), or street lighting (4,000+ lm), ensuring the correct brightness level enhances visibility, safety, and energy efficiency.

For automatic dusk-to-dawn solar street lights, ensure high-efficiency LED chips with a wide beam angle for uniform illumination.

How Many Lumens Are Good for a Solar Power Street Lights?

The ideal lumen output for a solar street light depends on the installation height, road width, and application type. A higher installation height and broader coverage area require more lumens to maintain adequate brightness and uniform illumination.

✅ Recommended Lumens for Solar Powered Street Lights Based on Area & Pole Height

lumens vs heights

💡 Pro Tip:

  • For narrow roads or pedestrian paths, lower lumen output is sufficient.
  • Higher lumens are needed for wide roads and highways to maintain adequate brightness.
  • Motion sensors can help adjust brightness levels dynamically, reducing energy consumption.

✅ Factors Affecting Lumen Requirements for Outdoor Solar Street Lights

1️⃣ Pole Height & Installation Distance

  • Higher poles require more lumens to ensure brightness reaches the ground effectively.
  • Proper spacing between poles ensures uniform illumination without dark spots.

2️⃣ Road Type & Width

  • Narrow pathways (3-5m wide) need 1,500-3,000 lm.
  • Two-lane roads (5-8m wide) need 4,000-8,000 lm.
  • Highways (12m+ wide) need 15,000+ lm with opposite or staggered installation.

3️⃣ LED Efficiency (Lumens per Watt, lm/W)

  • High-efficiency LEDs (≥150 lm/W) provide brighter light with lower energy consumption.
  • Lower efficiency LEDs (100-120 lm/W) require higher wattage to achieve the same brightness.

4️⃣ Beam Angle & Light Distribution

  • Type II & III optics are best for road lighting, covering elongated areas.
  • Type IV & V optics are ideal for parking lots and intersections, ensuring even light spread.

How Many Watts Are Needed for a Solar Street Lamps?

The wattage of a commercial solar street lights depends on lumen output, pole height, and application type. Higher poles and wider roads require higher wattage to ensure proper brightness and uniform illumination. Additionally, LED efficiency (lumens per watt, lm/W) plays a crucial role—higher efficiency LEDs (150-200 lm/W) require lower wattage to achieve the same brightness compared to lower-efficiency LEDs (100-120 lm/W).

✅ Recommended Wattage for Solar Street Lights Based on Area & Pole Height

💡 Pro Tip:

  • LEDs with 150-200 lm/W efficiency require lower wattage for the same brightness, saving battery power.
  • High-efficiency monocrystalline solar panels (≥18% efficiency) allow optimal wattage utilization.
  • Use MPPT charge controllers to increase energy conversion efficiency and maximize LED output.

✅ Factors Affecting Wattage Requirements for Solar Street Lights

1️⃣ LED Efficiency (lm/W)

  • Lower efficiency LEDs (100-120 lm/W) require more wattage for the same brightness.
  • High-efficiency LEDs (150-200 lm/W) reduce power consumption while maintaining brightness.

2️⃣ Pole Height & Light Distribution

  • Taller poles require higher wattage to ensure sufficient brightness at ground level.
  • Proper beam angles (Type II, III, IV, V optics) distribute light evenly across roads and pathways.

3️⃣ Solar Panel & Battery Capacity

  • Higher wattage lights require larger solar panels (100W-300W) for adequate charging.
  • Battery capacity should support 2-3 cloudy days for consistent operation.

4️⃣ Motion Sensors & Dimming Features

  • Smart solar lights with dimming reduce wattage during low-traffic hours, improving efficiency.
  • Motion sensors activate full brightness only when needed, saving power.

How Do You Size an Industrial Solar Street Light?

Determining the right size for a solar LED street light system is vital for maintaining peak performance, maximizing energy efficiency, and ensuring long-term dependability. Proper sizing involves balancing power consumption, battery capacity, and solar panel efficiency to meet lighting requirements while considering environmental conditions. Below are the key factors that determine the ideal system configuration.

🔹 1. Power Consumption & Wattage

Understanding the power consumption of a solar-powered street lighting system is the first step in determining the appropriate specifications.

  • The total energy consumption depends on the wattage of the LED fixture and its operating hours per night.
  • To calculate daily energy consumption (watt-hours):                                                               Watt-hours per Night=LED Power (W)×Operating Hours
  • Example: A 30W LED street light running for 10 hours per night requires:                                                        30W×10h=300Wh
  • Higher-wattage lights require larger battery storage and solar panel capacity.

🔹 2. Battery Size & Backup Time

Battery capacity determines how long the solar-powered LED street light will function, especially during overcast or rainy days. Choosing the right battery ensures uninterrupted lighting and extends the system’s lifespan.

  • Backup time: A well-sized battery should provide at least 2-3 days of power storage to compensate for cloudy weather.
  • Battery capacity formula:
Battery capacity formula

Example: If a solar street light requires 300Wh per night and uses a 12V battery, the battery capacity needed is: 300Wh/12v=25Ah

Battery type considerations:

  • LiFePO4 (Lithium Iron Phosphate) batteries: Longer lifespan, high efficiency, and deep cycle capabilities.
  • Lithium-ion batteries: Cost-effective but may degrade faster.
  • Lead-acid batteries: Lower upfront cost but bulkier and require more maintenance.

🔹 3. Local Sunshine Coefficient & Solar Panel Sizing
Solar panel sizing is crucial to ensure efficient charging and sustained power supply. The amount of sunlight available in a specific location significantly impacts the performance of the solar lighting system.

  • Sunlight coefficient: Areas with low peak sunlight hours (<4 hours/day) require larger solar panels to compensate for reduced charging time.
  • Solar panel power calculation:
  • Example: If a 30W solar LED street light requires 300Wh per day and the location receives 5 hours of peak sunlight, the solar panel should be: 300Wh​/5h=60W

Monocrystalline vs. Polycrystalline Solar Panels:

  • Monocrystalline panels: Higher efficiency (18-22%), longer lifespan, better performance in low-light conditions.
  • Polycrystalline panels: Lower efficiency (15-18%), cost-effective but requires more space.

A properly sized solar LED street light system ensures consistent brightness, reliable battery backup, and optimal solar panel performance, making it a sustainable and cost-effective lighting solution.

Solar Panel Types: Monocrystalline vs. Polycrystalline

Choosing the right solar panel type is essential for maximizing the efficiency and performance of a solar-powered street lighting system. The two most common options are monocrystalline and polycrystalline solar panels, each with advantages and limitations.

🔹 1. Monocrystalline Solar Panels

Monocrystalline solar panels are made from a single, high-purity silicon crystal, making them the most efficient option.

✅ Key Benefits:

  • Higher Efficiency (18-22%) – Converts more sunlight into electricity, making it ideal for areas with limited sunlight.
  • Space-saving – Requires less surface area to generate the same power as polycrystalline panels.
  • Longer Lifespan – Typically lasts 25+ years with minimal efficiency loss.
  • Better Low-Light Performance – Works efficiently in cloudy or shaded conditions.

⚠ Drawbacks:

  • Higher Cost – More expensive due to the complex manufacturing process.
  • Performance Difference May Be Negligible – In areas with ample sunlight, the efficiency gap between monocrystalline and polycrystalline panels may not be significant.

🔹 2. Polycrystalline Solar Panels

Polycrystalline solar panels are made from multiple silicon fragments melted together. While slightly less efficient than monocrystalline panels, they offer a cost-effective alternative.

✅ Key Benefits:

  • More Affordable – Lower production costs make them a budget-friendly choice.
  • Good Performance (15-18% Efficiency) – Suitable for locations with strong sunlight exposure.
  • Reliable and Durable – Proper maintenance can last up to 20-25 years.

⚠ Drawbacks:

  • Lower Efficiency – Requires more surface area to produce the same power as monocrystalline panels.
  • Weaker Low-Light Performance – Generates less electricity in cloudy or shaded conditions.

Which One Should You Choose for Solar LED Street Lights?

  • Monocrystalline solar panels are ideal for high-performance solar street lighting systems, especially in areas with limited sunlight.
  • Polycrystalline solar panels are a more budget-friendly option for locations with strong, consistent sunlight.

Monocrystalline panels are typically the best choice for all-in-one solar street lights and projects requiring maximum efficiency and durability.

Best Solar LED Street Lights: Key Features to Look For

When selecting the best solar LED street lights, it’s essential to evaluate key features that impact performance, durability, and efficiency. Below are the most important factors to consider:

1. High-Efficiency LED Chips & Brightness (Lumens Per Watt)

The brightness of a solar-powered street lighting system depends on the efficiency of its LED chips.

✅ What to Look For:

  • Lumens per watt (lm/W): Higher efficiency means brighter light with lower energy consumption.
  • Recommended LED chips: Bridgelux, Cree, and Philips, which are known for their high performance.
  • Color Temperature:
    • Cool White (5000K-6500K) – Ideal for roadways and security.
    • Warm White (3000K-4000K) – Better for residential and decorative lighting.

💡 Tip: Look for 130-200 lm/W LED chips for maximum efficiency.

2. Battery Type & Capacity

The battery is crucial for energy storage, ensuring the light operates throughout the night, even on cloudy days.

✅ Best Battery Options:

  • LiFePO4 (Lithium Iron Phosphate) – Best choice due to its long lifespan (8-10 years), high stability, and deep cycle performance.
  • Lithium-ion (Li-ion) – Good efficiency but degrades faster than LiFePO4.
  • Lead-acid – Lower cost but bulkier, requires frequent maintenance.

✅ What to Look For:

  • Battery capacity (Ah): Must support 2-3 nights of backup power.
  • Charge cycles: LiFePO4 lasts 2,000-5,000 cycles, while Li-ion lasts 1,000-2,000 cycles.

3. Solar Panel Type & Wattage

A high-quality solar panel ensures efficient energy conversion for consistent lighting.

✅ What to Look For:

  • Monocrystalline panels – Higher efficiency (18-22%), ideal for all-in-one solar street lights.
  • Polycrystalline panels – Lower cost (15-18% efficiency), suitable for sunny locations.
  • Correct panel wattage – This should match battery size and power consumption.

💡 Tip: Choose a larger solar panel (10-20% extra capacity) to ensure complete charging even on cloudy days.

4. Smart Charge Controller (MPPT vs. PWM)

A solar charge controller regulates the charging process and prevents battery overcharging.

✅ What to Look For:

  • MPPT (Maximum Power Point Tracking) controllers – 30% more efficient than PWM, optimize energy conversion.
  • PWM (Pulse Width Modulation) controllers – Less efficient but cheaper.

💡 Tip: Always choose MPPT controllers for better battery charging and higher efficiency.

5. Automatic Dusk-to-Dawn & Motion Sensor Features

Modern solar-powered LED street lights come with smart features to optimize energy usage.

✅ What to Look For:

  • Dusk-to-dawn sensor – Automatically turns on at night and off at sunrise.
  • Motion sensors – Adjust brightness based on movement, saving energy.
  • Remote control & monitoring – Useful for commercial and smart city applications.

💡 Tip: Motion sensors can extend battery life by 50% by reducing unnecessary energy consumption.

6. Durable Lamp Body & Weather Resistance

Since solar LED street lights are installed outdoors, they must withstand harsh environmental conditions.

✅ What to Look For:

  • Material: Aluminum alloy for durability and rust resistance.
  • IP Rating: IP65 or higher for protection against dust and heavy rain.
  • Wind resistance: Must withstand at least 100 km/h wind speeds.

💡 Tip: Look for the IK08-IK10 impact rating for extra protection against vandalism and harsh weather.

Quick Comparison Chart: Best Features for Solar LED Street Lights

Solar LED Street Lights Features

Solar Street Light Installation Guide

Installing a solar street light correctly ensures maximum efficiency, longevity, and reliability. Proper placement, wiring, and setup are crucial for optimal performance.

Step 1: Pre-Installation Planning

1️⃣ Choose the Right Location

  • Ensure the solar panel receives direct sunlight for at least 6-8 hours daily.
  • Avoid shaded areas (e.g., trees, buildings, or power lines) that may block sunlight.
  • Consider road width, pole height, and spacing for uniform illumination.

💡 Pro Tip: Use Google Maps or a solar pathfinder tool to check sunlight availability throughout the day.

2️⃣ Determine Installation Height & Distance

  • Higher poles require higher lumen output and wider installation spacing.
  • Use the following table for recommended pole height and installation distances:
solar light street light install guide

💡 Pro Tip: To ensure even lighting on wide roads (≥12m/40ft), install the lights in staggered or opposite-side configurations.

Step 2: Assembling the Solar Street Light

1️⃣ Unpacking & Checking Components

✔ Solar panel
✔ LED lamp head
✔ Battery pack (LiFePO4 or Lithium-Ion)
✔ Charge controller (MPPT or PWM)
✔ Mounting brackets & bolts
✔ Pole & foundation materials

💡 Pro Tip: Inspect all parts for damage or missing components before installation.

2️⃣ Assemble the Light Fixture

  • Attach the LED light head to the arm or pole.
  • Secure the battery box (if separate) to the pole base.
  • Mount the solar panel at the correct tilt angle (30°-45° for maximum sun exposure).
  • Ensure all wiring connections are correct and secure.

💡 Pro Tip: Use waterproof connectors to prevent damage from rain or dust.

Step 3: Installing the Pole & Foundation

1️⃣ Digging & Preparing the Foundation

  • Excavate a hole (80-150cm deep, depending on pole height).
  • Insert the anchor bolts for the pole foundation.
  • Pour concrete into the hole and let it cure for 24-48 hours.

💡 Pro Tip: A leveling tool ensures the pole stands perfectly vertically.

2️⃣ Mounting the Solar Street Light Pole

  • Carefully lift and position the pole on the anchor bolts.
  • Tighten the bolts securely to prevent movement.
  • Check pole alignment to ensure it’s standing straight.

💡 Pro Tip: Use reinforced concrete foundations for strong winds or unstable ground.

Step 4: Tilt Angle for Maximum Sunlight Absorption

Proper tilt angle adjustment is crucial for maximizing the solar panel’s energy absorption, ensuring efficient battery charging, and long-lasting performance of the solar street light. The correct tilt angle allows the solar panel to receive optimal sunlight exposure throughout the year, increasing efficiency and reliability.

✅ Why Is the Tilt Angle Important?

  • Maximizes solar energy absorption by aligning the panel perpendicular to the sun’s rays.
  • Prevents energy loss by reducing shading and reflection.
  • Improves charging efficiency, ensuring sufficient power for nighttime illumination.
  • Adapts to seasonal sun movement, maintaining consistent performance year-round.

✅ How to Determine the Best Solar Panel Tilt Angle?

The optimal tilt angle depends on the geographical latitude of the installation site. The basic rule is:

Tilt Angle Formula

  • Winter tilt angle = Latitude + 10° (to capture lower sun angles in winter).
  • Summer tilt angle = Latitude – 10° (to avoid excessive sun exposure and overheating).
  • Fixed angle (year-round use) = Latitude (standard setting for consistent performance).

✅ Recommended Solar Panel Tilt Angles by Latitude

💡 Pro Tip: In locations with seasonal variations in sunlight, use adjustable solar mounts to modify the panel’s tilt angle twice a year for maximum efficiency.

✅ Factors to Consider When Adjusting the Tilt Angle

1️⃣ Geographic Location & Sun Path

  • Lower latitudes (near the equator): Flatter tilt angles (10°-20°) work best.
  • Higher latitudes (closer to the poles): Steeper tilt angles (50°-75°) are needed to capture sunlight.

2️⃣ Seasonal Changes & Sun Elevation

  • In summer, the sun is higher in the sky → flatter panel angle (tilt -10°) improves efficiency.
  • In winter, the sun is lower in the sky → steeper panel angle (tilt +10°) captures more sunlight.

3️⃣ Climate & Weather Conditions

  • In snowy regions, use a steep tilt angle (50°-75°) to prevent snow accumulation.
  • In high-wind areas, avoid excessively steep angles to reduce wind resistance and pole stress.

✅ Fixed vs. Adjustable Tilt Angles: Which One Is Best?

💡 Pro Tip: If manual adjustment is not feasible, setting the tilt angle equal to the latitude provides consistent year-round performance.

Step 5: Connecting & Wiring the System

1️⃣ Connect the Solar Panel

  • Angle the panel towards the sun (typically south-facing in the Northern Hemisphere).
  • Securely connect the solar panel wires to the charge controller.

2️⃣ Connect the Battery & LED Light

  • Attach the battery wires to the charge controller.
  • Connect the LED lamp wires to the controller.
  • Ensure proper polarity (+/-) to avoid short circuits.

💡 Pro Tip: Use weatherproof junction boxes to protect electrical connections.

Step 6: System Testing & Final Adjustments

1️⃣ Charge & Test the System

  • Allow the battery to charge for 6-8 hours before first use.
  • Check if the LED light automatically turns on at dusk.
  • Test any motion sensors or dimming features.

2️⃣ Adjust Settings for Optimal Performance

  • Set the lighting mode (e.g., dusk-to-dawn, timer-based, or motion-activated).
  • Tilt the solar panel to optimize sunlight absorption.
  • Ensure firm connections and waterproof sealing.

💡 Pro Tip: Use an MPPT charge controller for better energy conversion and longer battery life.

Step 7: Maintenance & Troubleshooting

Regular Maintenance Tips

  • Clean solar panels every 2-3 months to remove dust & debris.
  • Check battery performance every 6-12 months for wear & tear.
  • Inspect LED modules for any dimming or flickering.
  • Tighten bolts & check pole stability after strong winds or storms.

Common Issues & Fixes

Final Thoughts

Selecting the right solar street lamp ensures optimal brightness, energy efficiency, and long-term performance. Key factors include high-efficiency LEDs (130-200 lm/W), monocrystalline solar panels, durable LiFePO4 batteries, MPPT charge controllers, and weatherproof (IP65+) designs. Proper pole height, spacing, and smart features like motion sensors enhance efficiency and reliability.

Upward Lighting offers high-quality, energy-efficient, and durable solar LED street lights for various applications. Our lights ensure maximum brightness, efficiency, and reliability with high-lumen LEDs (130-200 lm/W), advanced monocrystalline solar panels, long-lasting LiFePO4 batteries, and smart MPPT controllers. Built with IP65+ weatherproof materials, they withstand harsh conditions while providing cost-effective, maintenance-free operation.

Choose Upward Lighting for customized solutions, competitive pricing, and long-term warranties. Contact us for a custom quote or project consultation!

Request A Quote for Your Lighting Projects!

Share This Post Now:

Hey there, I'm Michael

I’m from Upward Lighting. We are a professional Outdoor led lighting manufacture in China since 2009. We provide high quality led lighting products for indoor and outdoor projects.

Get A FREE Quote Now

Find Some Other Interesting Topics

LED Outdoor Lighting

LED Indoor Lights

Company

Upward Lighting
  • Upwardlights
  • 008613822770715
  • +86-138 2277 0715
  • michael@upwardlighting.com
  • liao_ledup@126.com
  • Floor 5, N.O. 67 of Jingang Road, Western District of ZS, 528401, Guangdong Province, China
Copyright © 2025-Upward Lighting - All Rights Reserved

Request a Free Quote

We will be back to you within 6 Hours

china led outdoor lighting

Landscape
And Facade

Lighting Fixtures

Architectural Floodlight | Led Wall Washer | Inground Light | Led Pool Light | Led Street Light | Palm Tree Light | Led Garden Light | Outdoor Wall Light | Led Stadium Light | Led Fountain Light | Led Highbay Light | Led Underwater Light

Download Our Full Catalog

Get notified about new products

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
